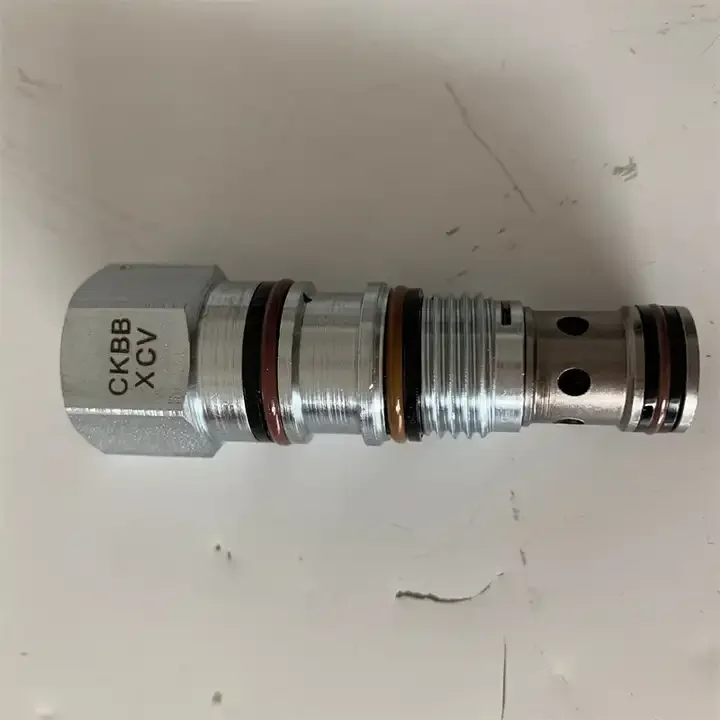

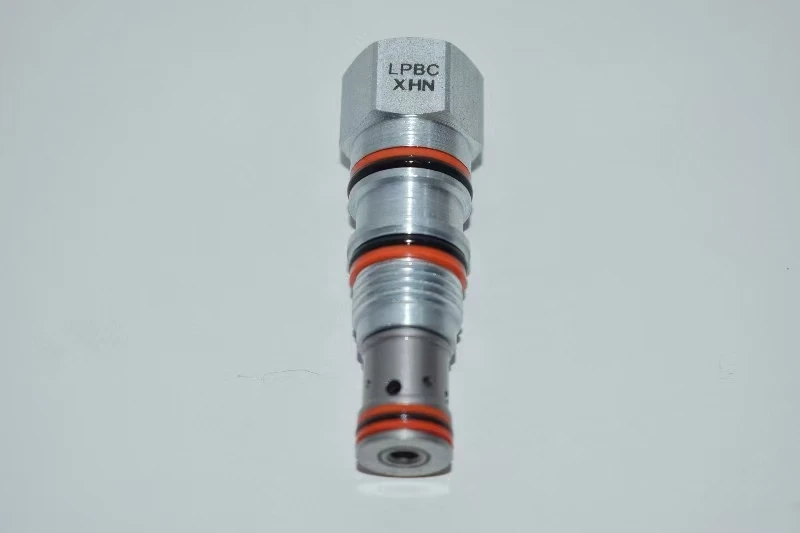

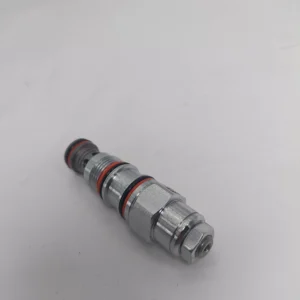

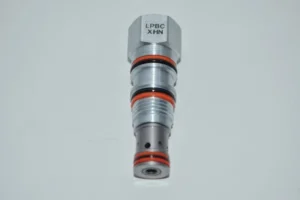

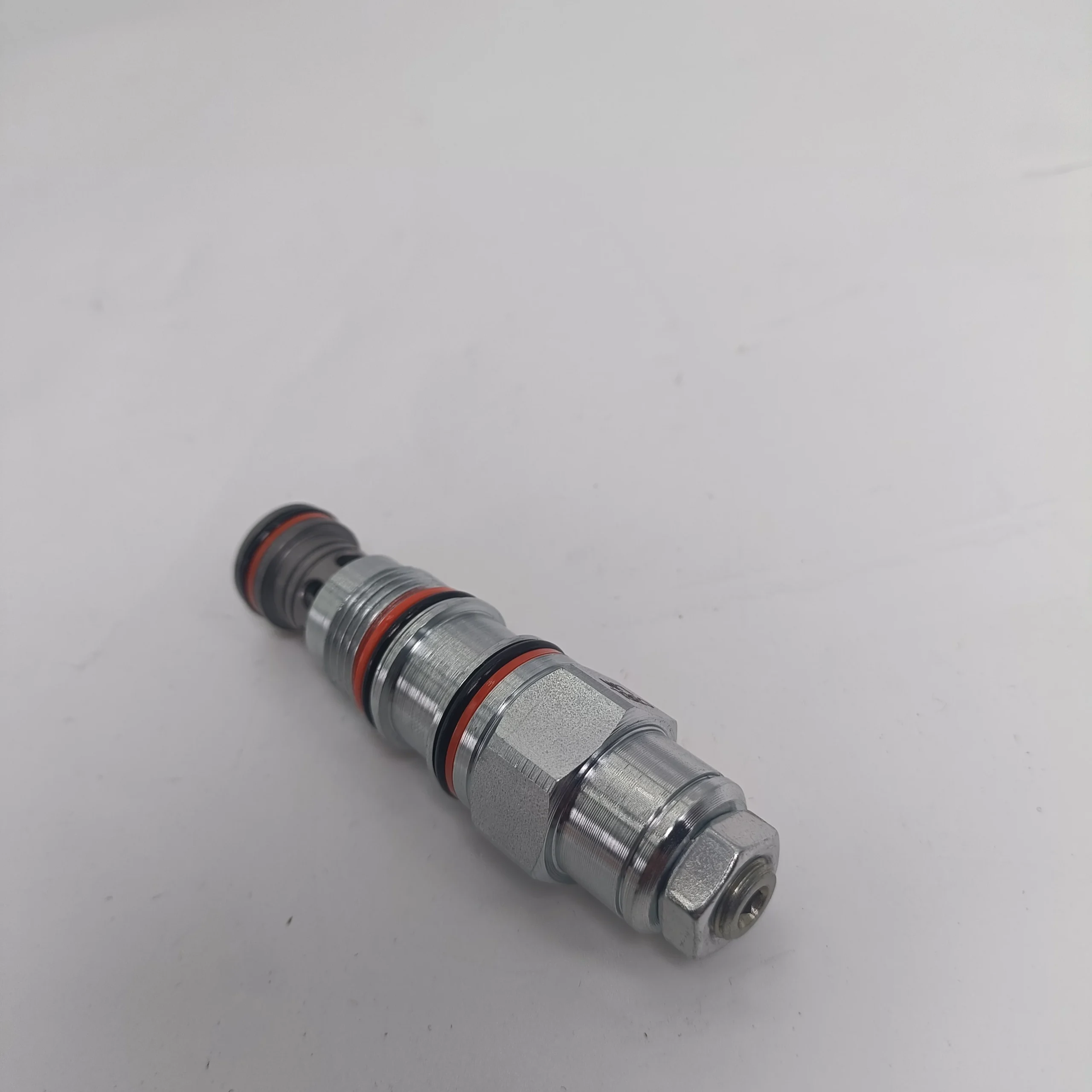

SUN Hydraulics Cartridge Valves CSAD RDHA CXHA RDBA CBIA CAIG PBDB

The industrial-grade SUN Hydraulics Compatible Threaded Cartridge Valves, engineered by Chengyuan Hydraulic, are fluid power regulation components developed for integrated hydraulic manifolds, custom valve packages, and mobile machine control networks. As a global standard in screw-in cartridge technology, this series incorporates SUN’s distinctive “Floating Architecture” design. This configuration isolates the internal working parts from installation stresses, solving common industry issues such as spool binding, response lag, and internal bypass leakage caused by machining misalignment in manifold cavities.

This professional B2B technical documentation profiles and replaces seven of SUN’s high-demand factory reference models: CSAD-XXN (Shuttle Valve), RDHA-LCN (Direct-Acting Relief Valve), CXHA-XDN (Check Valve), RDBA-LWN (Direct-Acting Relief Valve), CBIA-LHV (Counterbalance Valve), CAIG-LGN (Counterbalance Valve with Pilot Assist), and PBDB-LWN (Pilot-Operated Pressure Reducing Valve). Covering pressure, flow, and directional control functions, these cartridges are frequently selected for modern excavator swing circuits, aerial work platform brake control blocks, crane winch load-holding systems, and machine tool clamping power units.

Chengyuan’s alternative cartridge valves perfectly re-align with original SUN dimensional profiles regarding standard mounting threads (e.g., 7/8-14 UNF), cavity insertion geometry, internal seat tapers, and mechanical adjustment configurations. This configuration delivers 100% direct drop-in interchangeability for international B2B distributors, fluid power service stations, and OEM machinery builders. Service teams can screw these replacements directly into existing aluminum or steel manifold cavities using standard torque specs without needing secondary reaming or port modifications, minimizing field maintenance downtime.

Screw-in cartridge valves operate with tight internal slide tolerances under challenging conditions, including high-frequency cycling, intense pressure peaks up to 420 bar, and prolonged dead-head load retention. Lower-grade alternatives often suffer from rapid seat wear due to shallow case hardening or control drift from spring relaxation. To ensure operational safety, 100% of Chengyuan’s replacement cartridge valves undergo 100% strict dynamic load testing on digitized simulation benches. Each valve is fully evaluated to verify original flow-vs-pressure drop curves, cracking/reseating response profiles, and zero-leakage sealing integrity before packaging.

Technical Specifications

• Product Classification: High-Precision Threaded Screw-In Cartridge Hydraulic Control Valves

• Compatible Reference Platform Series: SUN Hydraulics Standard Cavity Formats (T-10A, T-11A, T-2A, T-3A Series)

• Functional & Performance Configurations per Model Code:

  • Replacement Reference: CSAD-XXN: Shuttle Valve, utilizes T-11A cavity, max rated flow of 23 L/min (6 gpm), max operating pressure of 350 bar (5000 psi).

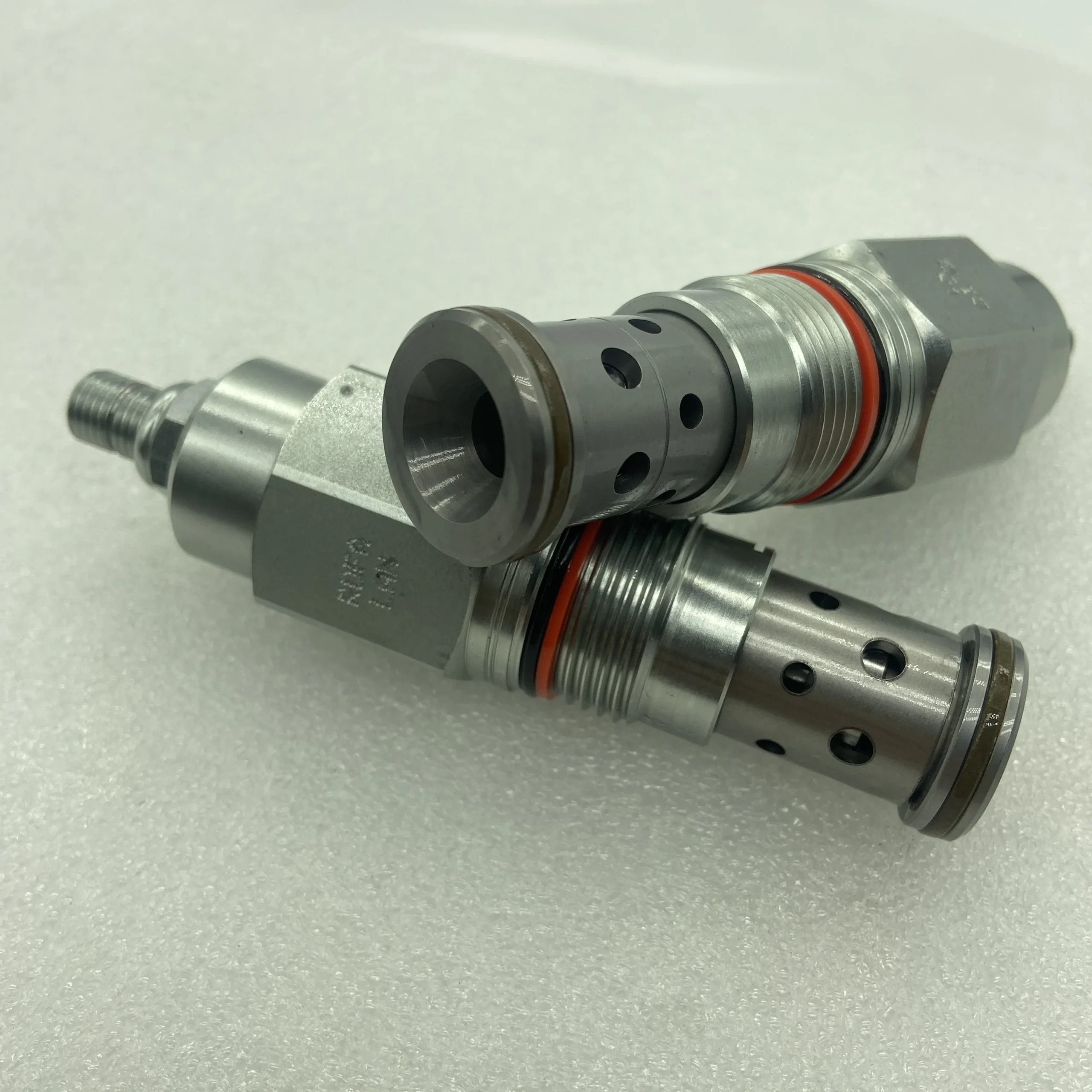

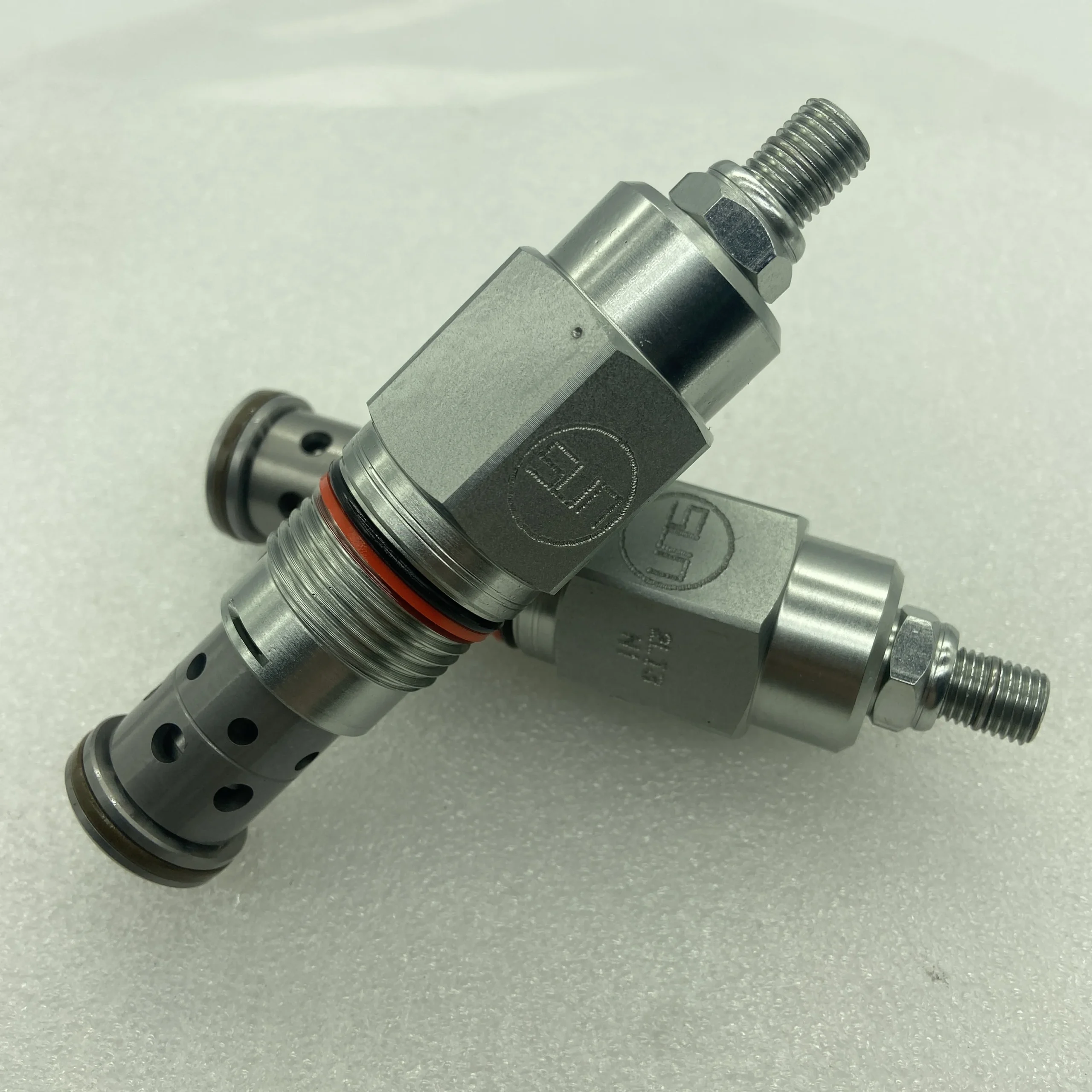

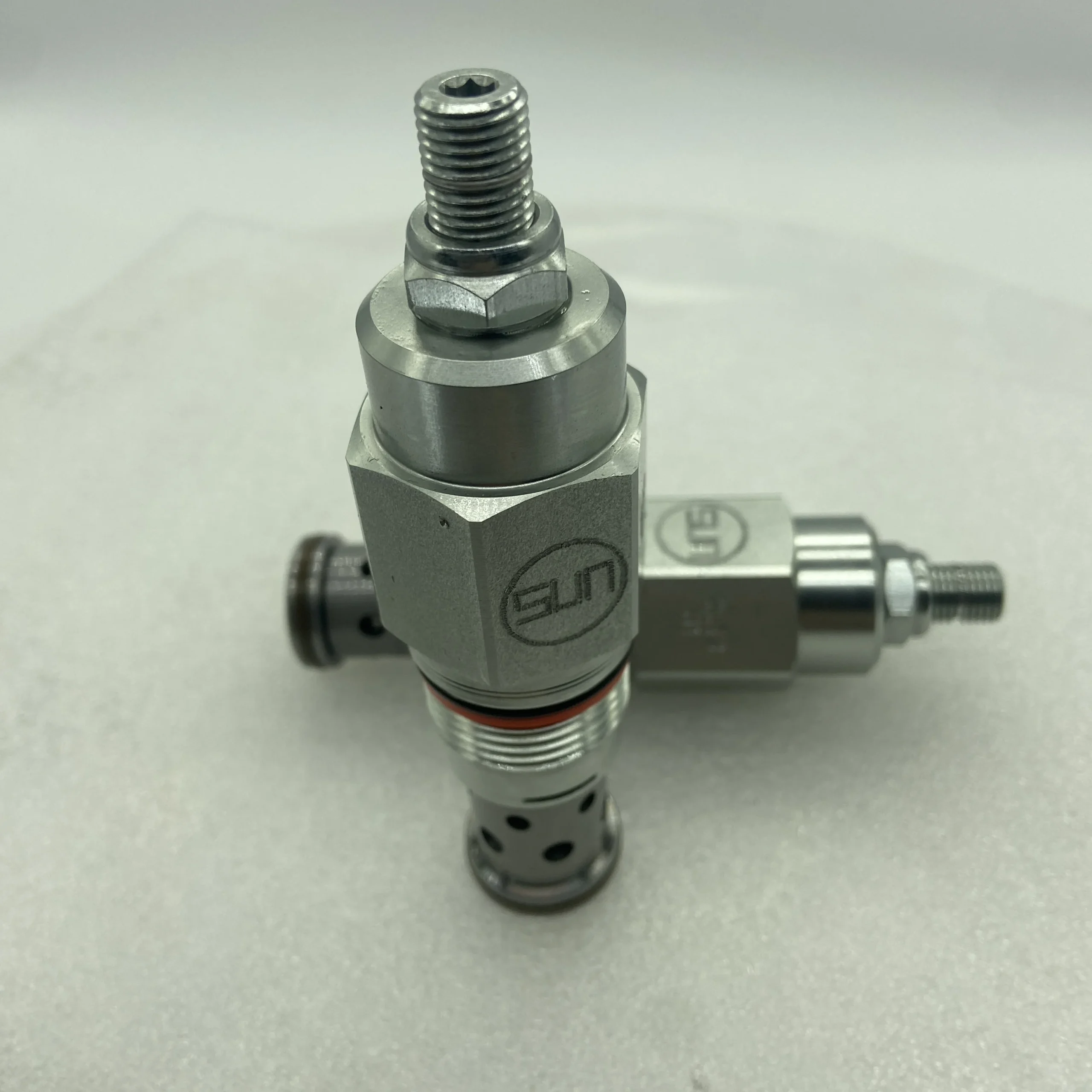

  • Replacement Reference: RDHA-LCN: Direct-Acting Relief Valve, T-10A cavity, max flow of 95 L/min (25 gpm), L-control (screw adjustment), C-pressure rating (10–420 bar, preset at 210 bar), N-seal (Buna-N).

  • Replacement Reference: CXHA-XDN: Free-Flow Side-to-Nose Check Valve, T-11A cavity, max flow of 40 L/min (10 gpm), max pressure of 350 bar, D-cracking pressure rated at 3.5 bar (50 psi).

  • Replacement Reference: RDBA-LWN: Direct-Acting Relief Valve (Low-Flow), T-10A cavity, max flow of 15 L/min (4 gpm), W-pressure adjustment window (10–315 bar), ideal for pilot control or remote regulation.

  • Replacement Reference: CBIA-LHV: Load-Holding Counterbalance Valve, T-11A cavity, 3:1 pilot ratio, max flow of 30 L/min (8 gpm), H-pressure range (70–280 bar), V-seal setup (premium Viton).

  • Replacement Reference: CAIG-LGN: High-Capacity Counterbalance Valve with Pilot Assist, T-2A cavity, 4.5:1 pilot ratio, max flow of 60 L/min (15 gpm), G-pressure range (140–420 bar).

  • Replacement Reference: PBDB-LWN: Pilot-Operated Pressure Reducing Valve, T-11A cavity, max flow of 40 L/min (10 gpm), W-pressure range (10–315 bar), provides stable secondary regulated low-pressure supply.

• Operating Temperature Horizon Spectrum: -30°C to +120°C (subject to elastomer compound choice)

• Recommended Medium Cleanliness Standard: Maintained to ISO 4406 19/17/14 or cleaner

Key Technical Advantages

• Two-Step Floating Structural Architecture: The cartridge assembly features a two-piece design that separates the external mounting threads from the internal cage, spool, and seating areas. When threaded into a manifold, the outer body handles the axial installation torque while the inner cage self-adjusts radially within micron limits. This isolates the internal spool from mechanical stress caused by over-torquing or manifold distortion to ensure smooth movement and eliminate sticking.

• Case-Hardened and Micro-Lapped High-Alloy Steel Spools: The internal spools, poppets, and pilot needles are forged from high-nickel-chrome alloy steel, case-hardened above HRC 60 to resist wear and cavitation. The critical sealing edges are finished on micro-lapping machinery to maintain tight tolerances, keeping internal leakage to a minimum at high pressures (350–420 bar) for secure load holding.

• CFD-Optimized Low-Pressure-Drop Internal Passages: The internal flow pathways and metering windows are shaped using Computational Fluid Dynamics (CFD) simulation. By removing sharp internal corners and dead-flow zones, this design ensures smooth fluid transitions, reducing fluid shear and pressure drop at maximum rated flows to minimize heat generation and improve system efficiency.

• Anti-Fatigue Silicon-Chromium Springs with Corrosive-Resistant Finishes: The primary regulating springs are wound from high-purity Silicon-Chromium (Si-Cr) steel wire and subjected to multi-stage shot peening and preset processing. This ensures the spring rate changes by less than 1% over millions of operating cycles to prevent pressure drift. Exposed adjustment screws are protected with a premium zinc-nickel (Zn-Ni) coating for reliable salt-spray corrosion resistance in marine and outdoor environments.

Application Areas

Chengyuan’s high-performance replacement SUN series threaded cartridge valves are widely used across high-density integrated manifold manifolds and multi-station fluid networks:

• Mobile Engineering & Construction Vehicle Hydraulic Infrastructure: Integrated into pilot control blocks for excavators and wheel loaders, steering logic blocks, closed-loop hydrostatic drive system shuttles (CSAD), and aerial platform mast safety lift circuits (CBIA / CAIG).

• Heavy Duty Material Handling & Mobilized Lifting Equipment: Installed into the hoist motor control manifolds of mobile crane units, crawler cranes, and utility lift trucks to provide reliable load holding and overspeed burst protection.

• Industrial Factory Automation, Production Presses & Machine Tools: Extensively used within multi-station clamping plates, injection molding blocks, and custom scrap baler manifolds to provide secondary pressure regulation (PBDB), high-pressure safety relief (RDHA / RDBA), and zero-leak directional holding (CXHA).

Expert Maintenance Tips

• Prior to Screwing Any Cartridge Valve into the Manifold, Verify Cavity Dimensions with a Proper Plug Gauge and Always Use a Calibrated Torque Wrench Set to the Model’s Standard Specified Values: While the floating architecture isolates internal components from stress, over-tightening can deform the outer body or damage the aluminum manifold threads. Never use an air impact wrench for installation.

• Because of the Tight Internal Clearances, Maintain System Filtration at 10 Microns or Better (Recommended ISO 4406 17/15/12) and Perform an Online Flush for at Least 4 Hours on New or Reconfigured Systems: Small particulate contamination entering the fluid loop can easily block the pilot orifices in pressure-reducing (PBDB) or relief valves (RDHA), leading to pressure instability or loss of adjustment capability.

• For Pump Variants Carrying the “-V” Suffix (Viton Seals) Like the CBIA-LHV, Ensure All Replacement O-Rings and Back-Up Washers Match the Original Elastomer Specifications During Service: Viton seals are engineered for high-temperature environments (up to 120°C) and specialized synthetic fluids. Substituting standard Buna-N (NBR) seals in these applications can cause the seals to harden and fail prematurely, leading to cross-port internal leakage between manifold channels.
