SUN Hydraulics Cartridge Valves | CSAZ-XXN CBCA-LAN PPDB-OEN | Pressure & Check Valves

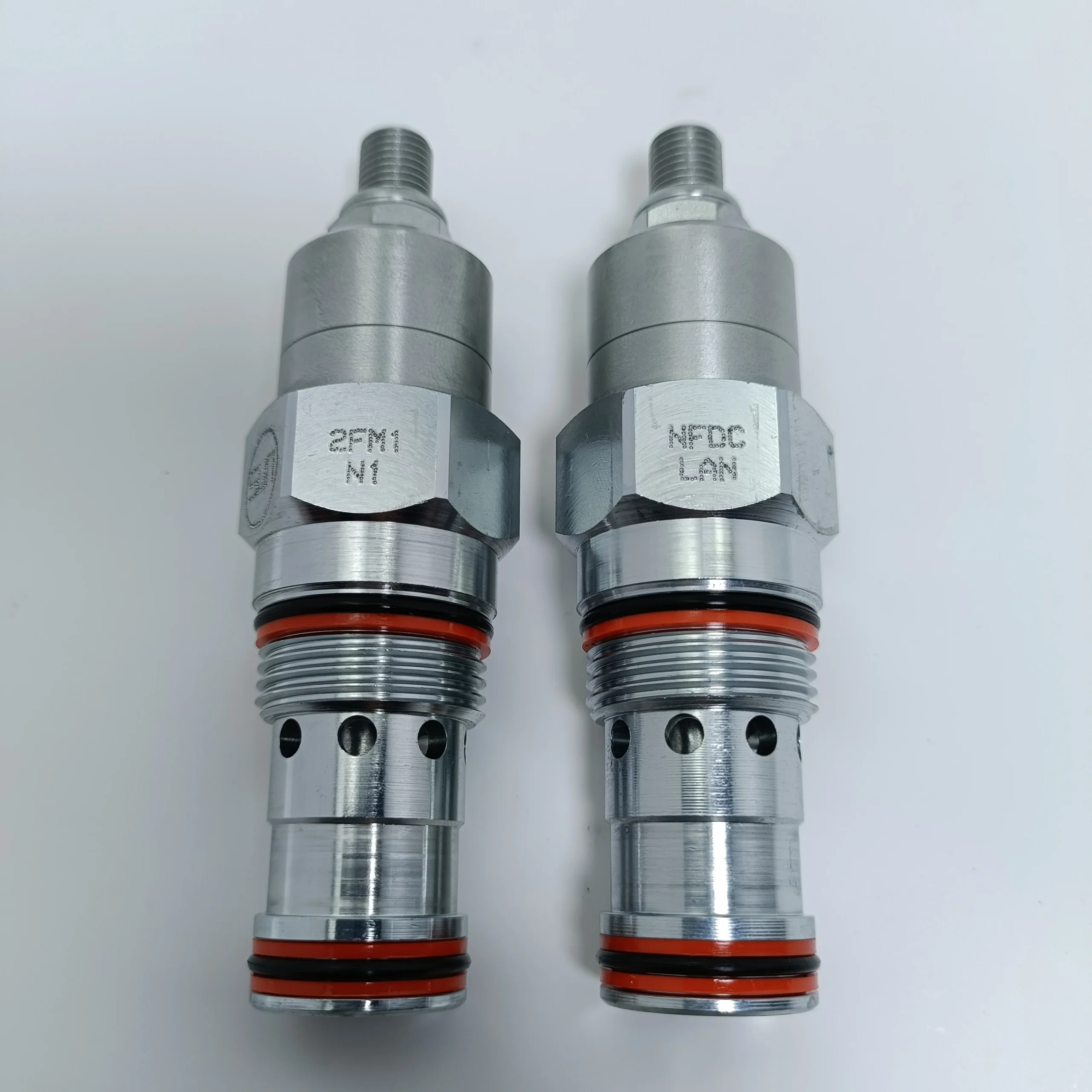

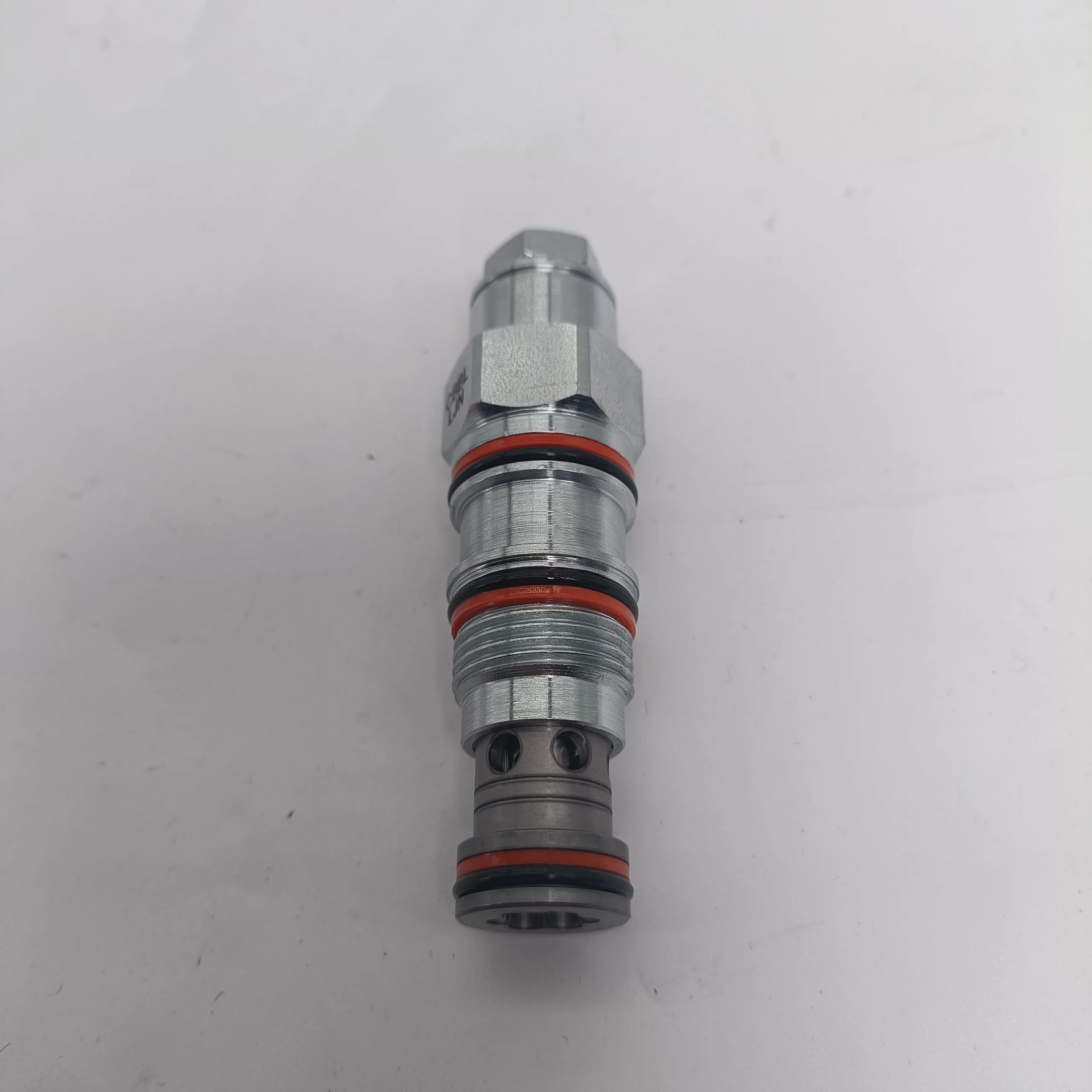

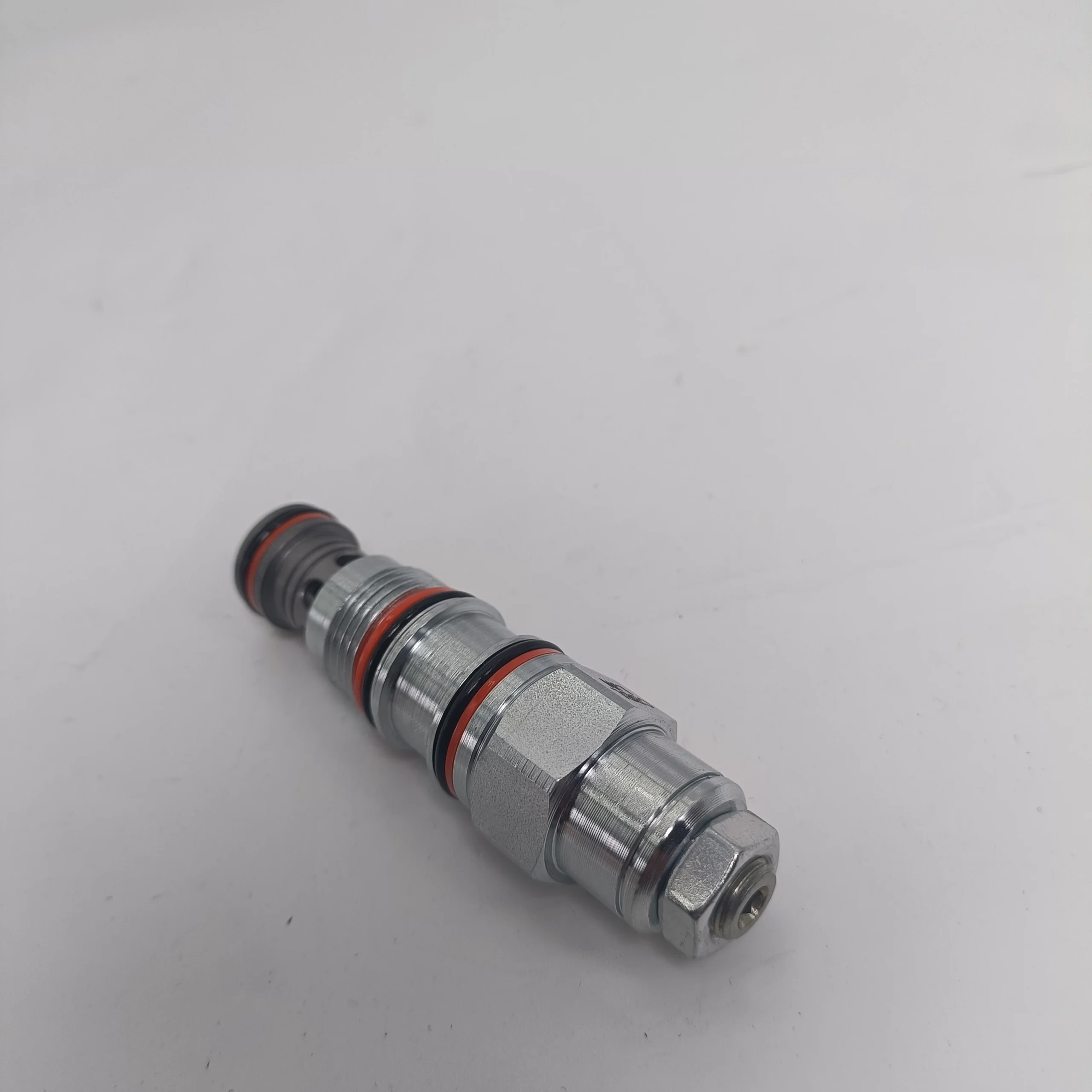

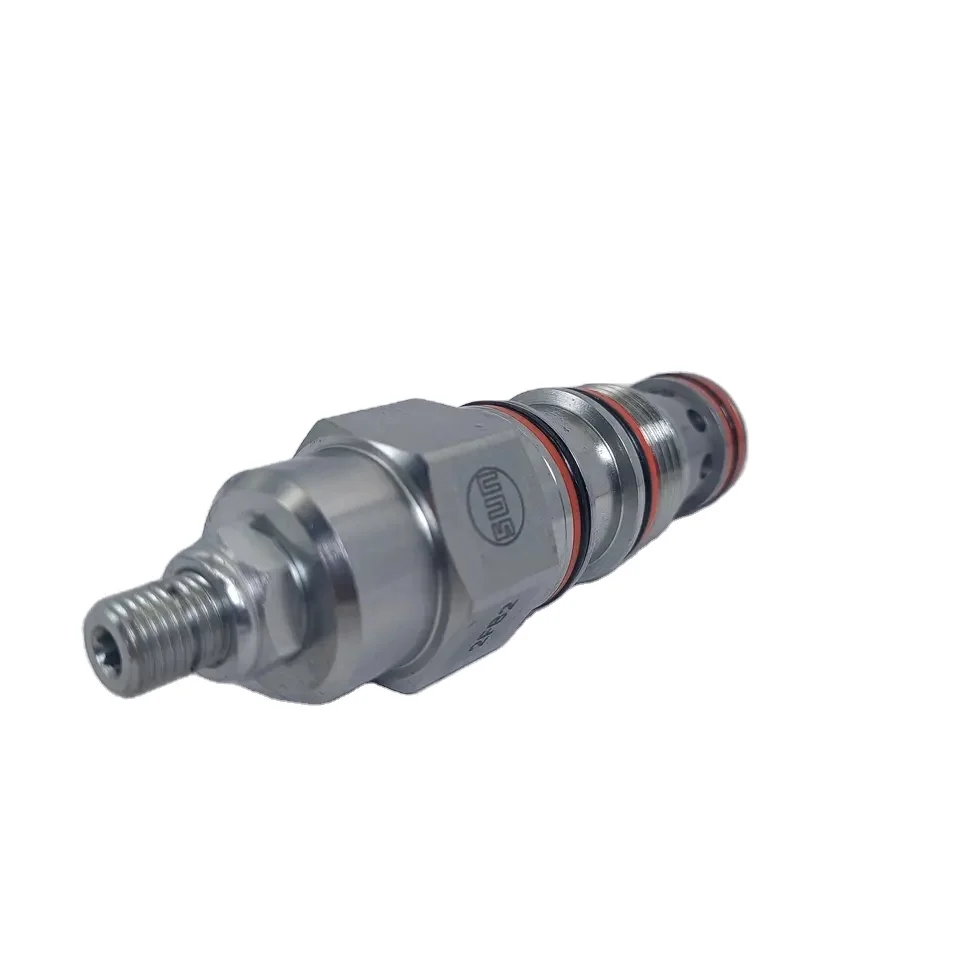

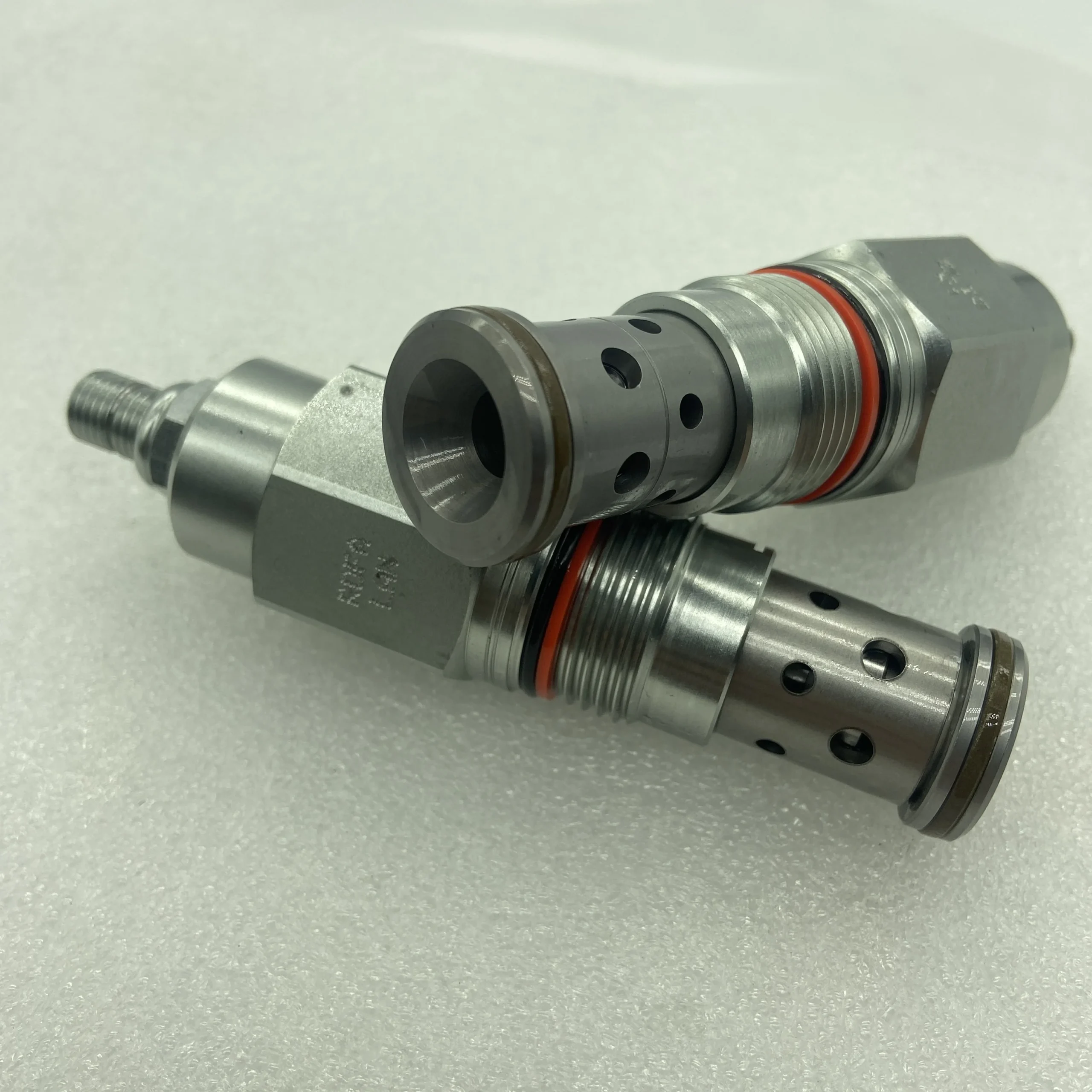

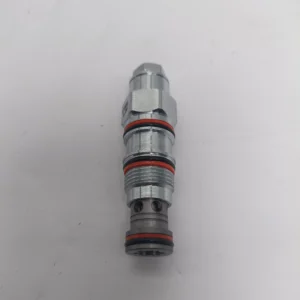

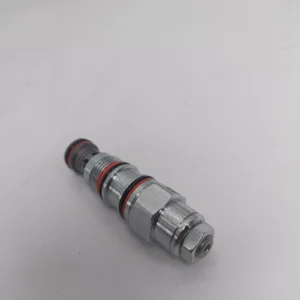

Chengyuan Hydraulic presents a comprehensive range of SUN Hydraulics series threaded cartridge valves, precision-engineered for high-precision control in industrial and mobile equipment. This lineup includes counterbalance valves (CBCA/CBBD), reducing/relieving valves (PPFB/PPDB), sequence valves (CSAZ), and check valves (NCFB). Adopting the industry-leading “floating” design philosophy of SUN, Chengyuan ensures that every valve matches the original SUN Hydraulics specifications in installation torque, flow characteristics, and pressure response with 100% Drop-in Interchangeability. Supported by our 100% Simulation Load Testing, our valves demonstrate exceptional zero-leakage performance and extended service life under 350 bar high-pressure conditions.

Technical Specifications

• Counterbalance Models: CBCA-LAN, CBBD-LJN (Standard Pilot Ratio 3:1)

• Reducing/Relieving Models: PPFB-LAN, PPDB-OEN (Pilot-operated)

• Sequence Valve Models: CSAZ-XXN (with reverse flow check)

• Check & Needle Valve Models: CDAB-XBV, NCFB-LCN

• Max Operating Pressure: 350 bar (5000 psi)

• Flow Capacity: 15 L/min – 480 L/min (Standard cavity sizes T-11A, T-2A, etc.)

• Sealing Material: Buna-N (Standard) / Viton (High-temp optional)

• Cavity Specifications: Fully compliant with SUN Hydraulics standard cavities

• Adjustment: Standard L Adjustment (Screw) or O Adjustment (Handwheel)

Key Technical Advantages:

• Floating Construction: Mimicking SUN’s core technology, the internal components self-center during installation. This allows for higher installation torque and prevents spool binding caused by manifold machining tolerances or thermal expansion.

• Hardened Internal Components: All critical throttling parts are made from specialized alloy steel, vacuum heat-treated, and precision-ground. This significantly enhances wear resistance, maintaining stable pressure settings even in systems with minor oil contamination.

• Low Hysteresis Response: Through optimized spring linearity and flow path design, Chengyuan replacement valves offer minimal hysteresis during pressure regulation, enabling smooth starting and braking of hydraulic actuators.

• High-Integrity Load Holding: The valve seats undergo super-finishing processes, resulting in internal leakage rates far below industry standards. Particularly in CBCA counterbalance applications, it ensures zero drift for heavy loads during extended downtime.

Application Areas:

• Aerial Work Platforms: Implementing CBCA valves for smooth luffing and telescopic control.

• Injection Molding: PPDB valves for precise clamping force regulation.

• Construction Machinery: CSAZ sequence valves for logical action switching in multi-circuit systems.

• Hydraulic Integrated Circuits (HIC): Integrating into custom manifolds to minimize system footprint.

Expert Maintenance Tips:

• Installation Torque: Strictly adhere to SUN’s torque specifications (e.g., 40-50 Nm for T-11A). Over-torquing may damage seals, while under-torquing causes external leakage.

• Oil Cleanliness: Due to the small damping orifices in cartridge valves, a system filtration accuracy of 10μm absolute is recommended to prevent pressure fluctuations in valves like the PPDB.

• Adjustment Note: Ensure the load is securely supported before adjusting counterbalance valves. Turning the adjustment screw clockwise increases the pressure setting.
