SUN Hydraulics FDCB-LAN PBDB-LEN | Cartridge Valves PVJA-LAN NFCC-LDN

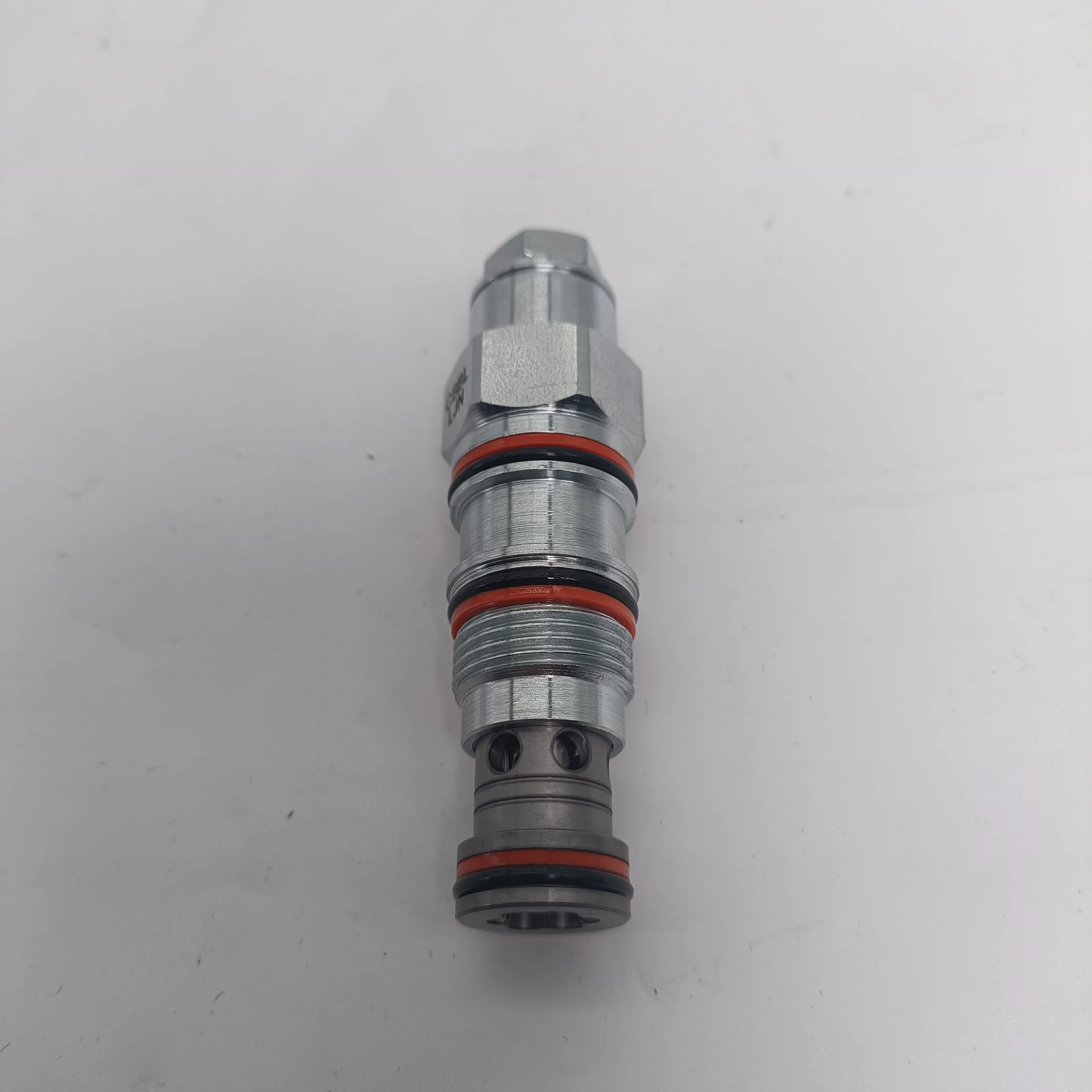

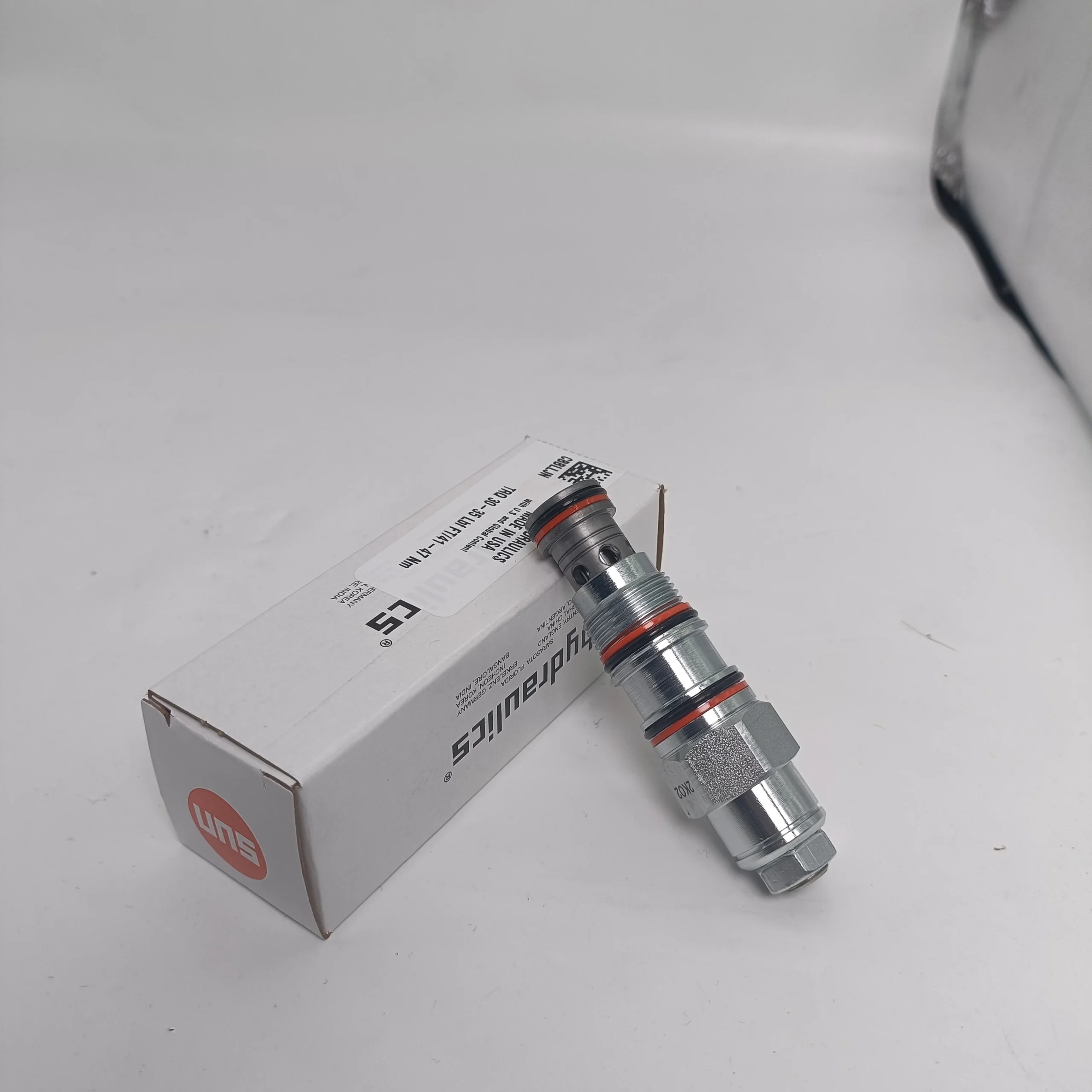

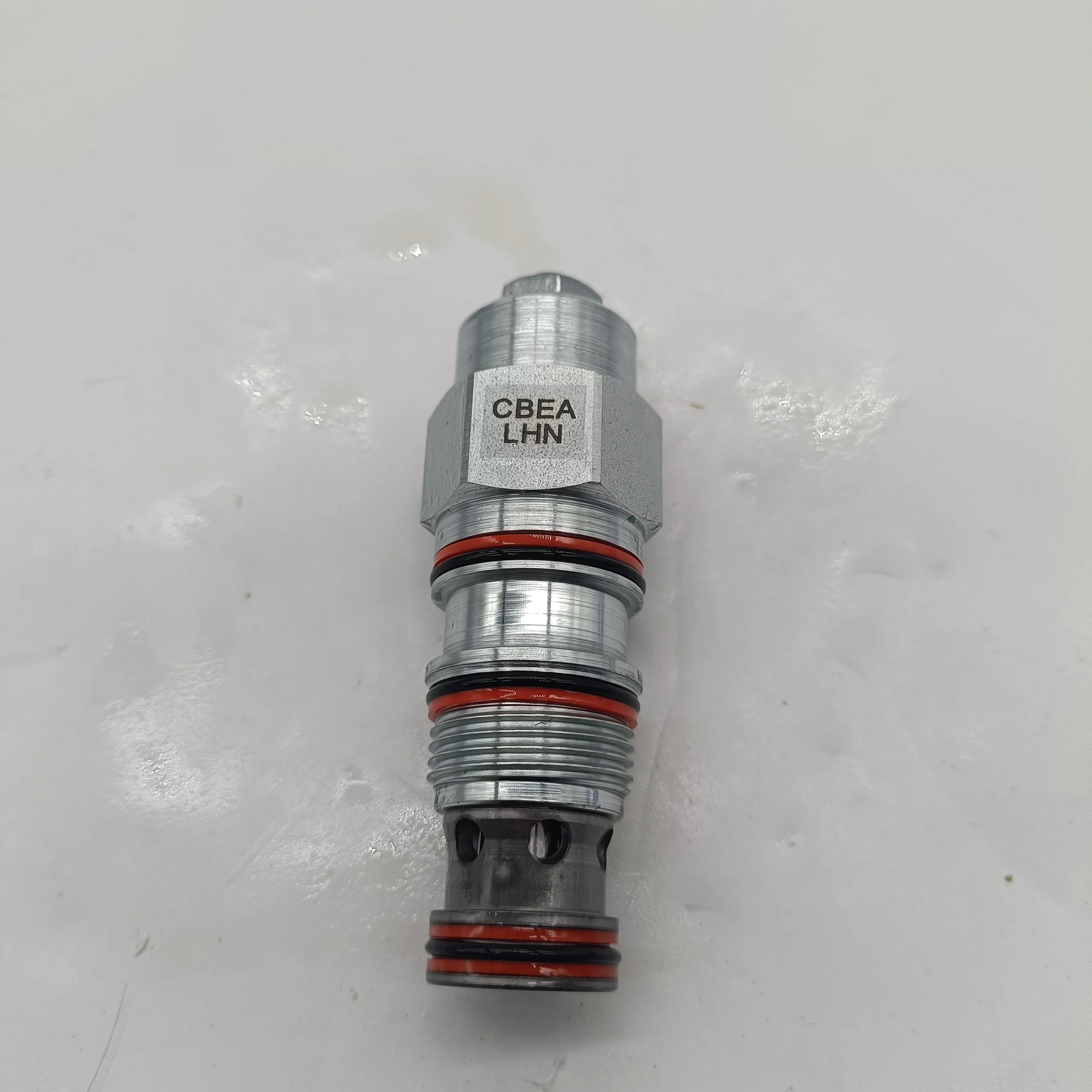

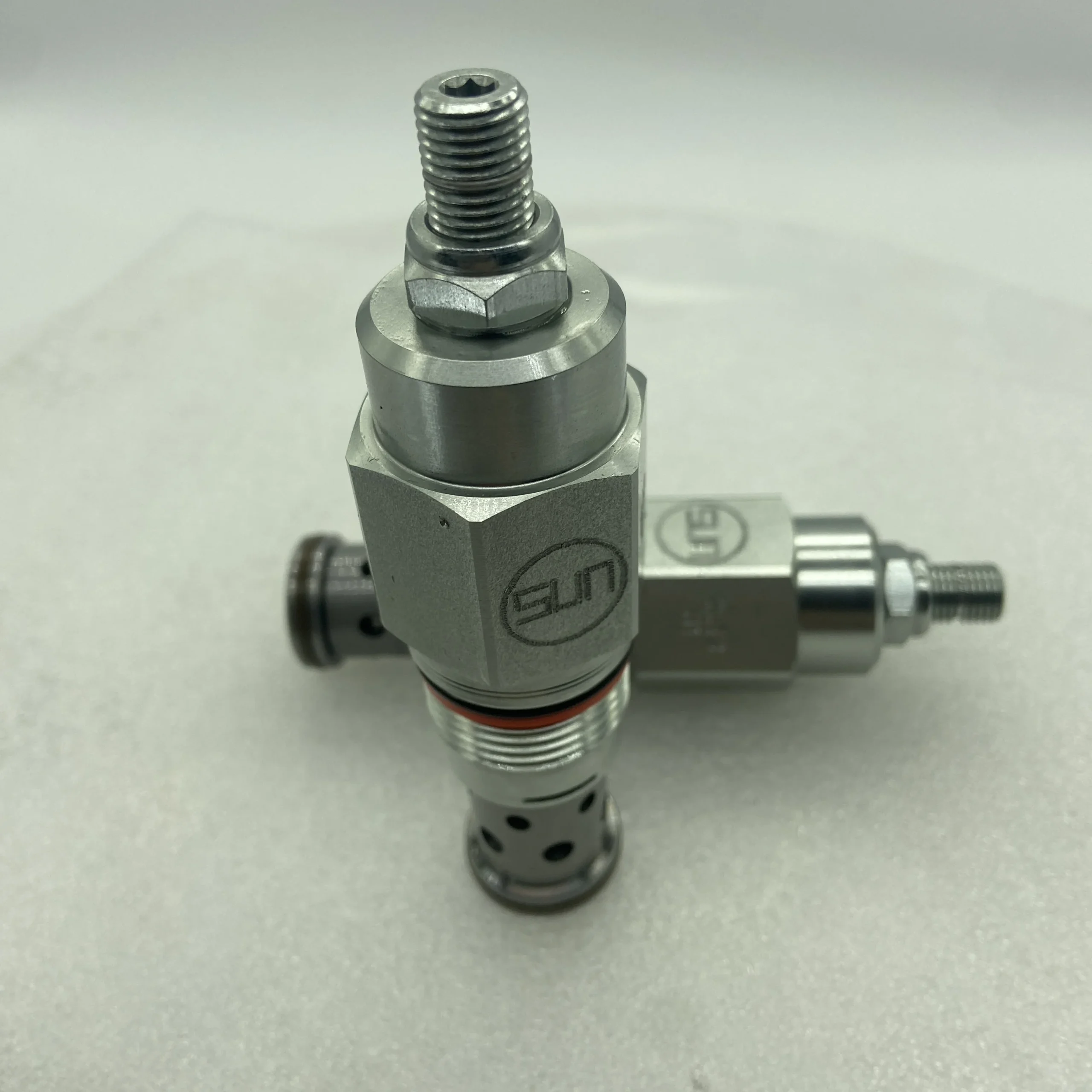

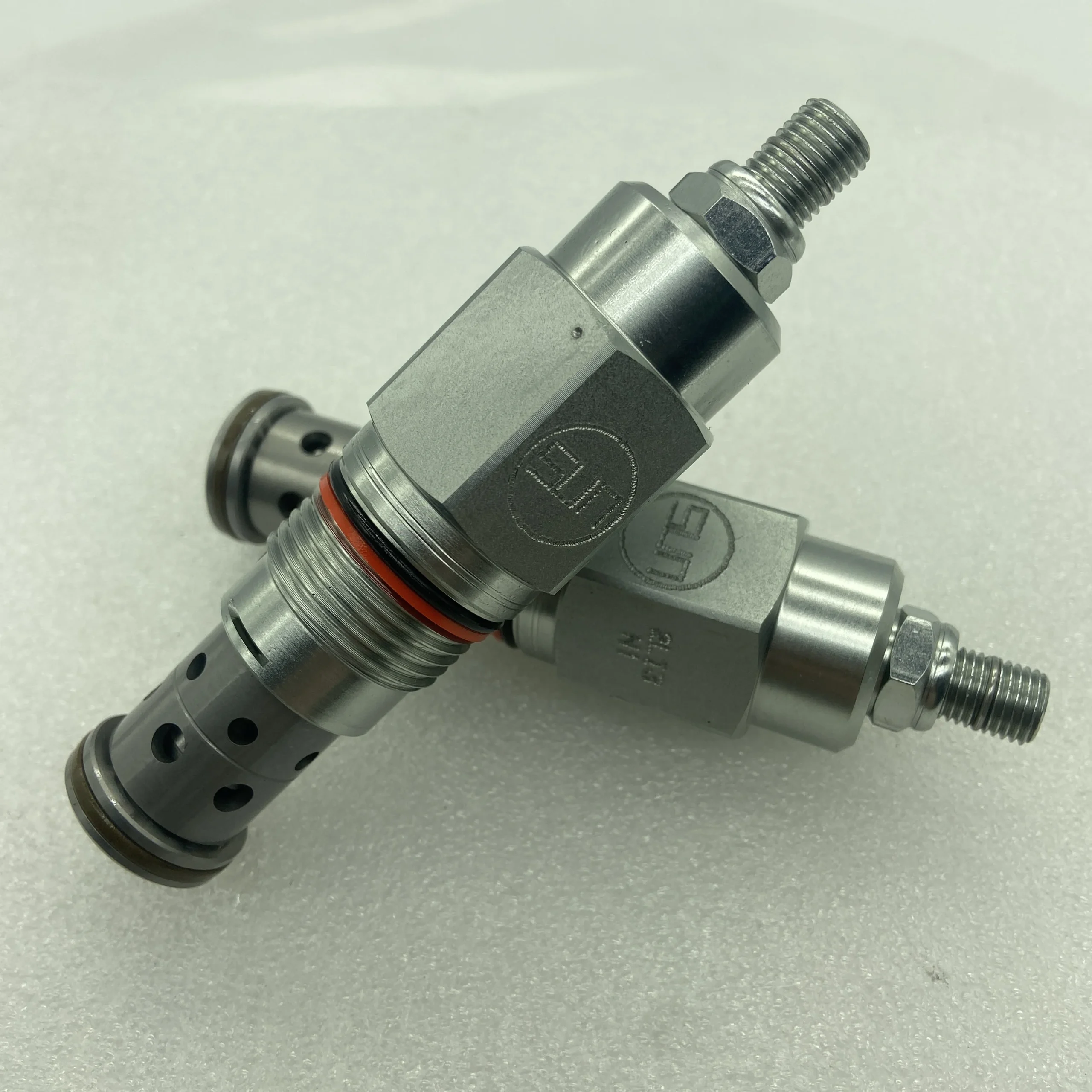

The screw-in hydraulic cartridge valves manufactured by Chengyuan Hydraulic are precision fluid modulation elements fully compatible with SUN Hydraulics industry standards. Renowned for adapting the classic “Floating Construction” design, these cartridges inherently prevent internal spool binding caused by over-torquing during manifold installation. This high-tier control suite covers core operational designations including FDCB-LAN (Flow Divider/Combiner), PBDB-LEN (Direct-acting reducing/relieving model), PVJA-LAN (Electro-proportional throttle), and NFCC-LDN (Fully adjustable needle valve). Every single valve is manufactured from hardened tool steel and undergoes 100% simulated load testing for dynamic flow profiling and leakage constraints to guarantee original-matching linearity and deliver proven 100% original-place interchangeability.

Technical Specifications :

• Product Series: SUN Standard Screw-In Cartridge Valve Profiles

• Functional Identification Cross-Reference:

  • FDCB-LAN: Flow Divider/Combiner cartridge, 30 – 120 L/min rated flow, 350 bar max rating

  • PBDB-LEN: Direct-acting pressure reducing/relieving valve, 7 – 210 bar adjustment range

  • PVJA-LAN: Electro-proportional throttle valve, micro-metering range (0.4 – 24 L/min dependent)

  • NFCC-LDN: Fully adjustable needle valve with integrated free-flow check

  • RDBA-LWN: Direct-acting relief valve, 10 – 210 bar pressure regulation range

  • NFBC-LCN: Straight needle valve (without check), C-cavity configuration standard

  • CXDA-XCN: Direct-acting check valve, fixed flow direction, ~2 bar cracking threshold

• Maximum System Pressure: 350 bar (35 MPa / 5000 psi)

• Wetted Element Composition: High-grade vacuum-hardened steel alloy spools with black-oxide surface shielding

• Adjustment Mechanism Coding: L (Standard Hex Screw/Handwheel adjustment) / X (Fixed/Non-adjustable tracking)

• Quality Audit Protocol: 100% certified for internal drop seal integrity and operational crack limits

Key Technical Advantages:

• Proprietary Floating Construction Topology: Every cartridge replicates the specialized dual-stage floating interface. The internal working assembly (spool and sleeve) maintains radial clearance within the screw-in body. This isolates the internal clearances from any stress deformation even if installation torque exceeds nominal specifications.

• Vacuum-Hardened Alloy Tool Steel Spools: The moving control elements are machined from premium alloy tool steel and heat-treated to HRC 60 – 62. This ultra-hard surface resists high-velocity fluid erosion at the throttling edges, neutralizing pressure drift during extended field service.

• High Synchronous Precision for FDCB Divisors: For the FDCB-LAN division matrix, internal metering orifices are match-ground symmetrically. Regardless of asymmetric load biases between two parallel cylinders or motors, the valve manages flow division with a tight synchronization tolerance within $\pm 3\%$.

• Minimal Hysteresis & Superior Pressure Override Limits: The pressure regulation stages in the PBDB-LEN and RDBA-LWN employ robust, pre-stressed spring configurations. The valve responds in milliseconds to sudden system pressure shocks, suppressing dynamic pressure override and safeguarding vulnerable downstream actuators.

Application Areas:

• Custom Integrated Hydraulic Manifolds (HPU Blocks): Seamlessly integrated into specialized block manifolds for agricultural systems, industrial power units, and refuse trucks.

• Dual-Actuator Synchronous Drive Frameworks: Used in telescopic cranes or boom lifts where the FDCB-LAN ensures parallel leveling of twin lift cylinders under uneven loading.

• Proportional Flow Adjustments: Utilizing the PVJA-LAN to achieve step-less, remote electronic modulation of fluid velocities across automated conveyor tracks or handling rigs.

Expert Maintenance Tips:

• Strict Adherence to Nominal Cavity Torques: Although equipped with floating protection, each cartridge must be threaded home using a calibrated torque wrench matching the specific cavity code (e.g., T-11A, T-2A). Over-torquing can permanently warp or strip the threads in aluminum or cast manifold blocks.

• De-pressurize Before Mechanical Setting: Before turning the hex adjuster on pressure models like the PBDB-LEN or RDBA-LWN, ensure you back off the jam nut completely. Monitor live pressure gauge lines during setting adjustments; never fully bottom out the spring adjustment to avoid system over-pressurization.

• Isolate O-Rings and Backup Rings During Seat Ingress: SUN cartridges feature multiple layers of nitrile elastomeric seals paired with Teflon backup rings. Lightly lubricate the ports before pressing the assembly into the block cavity, making sure the backup rings do not roll or pinch, which would cause severe valve-to-valve cross-bleeding.
