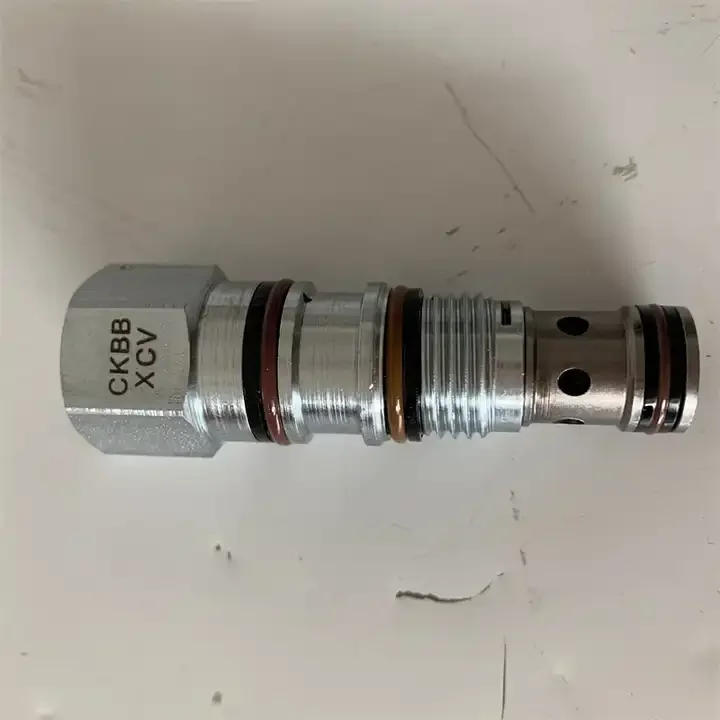

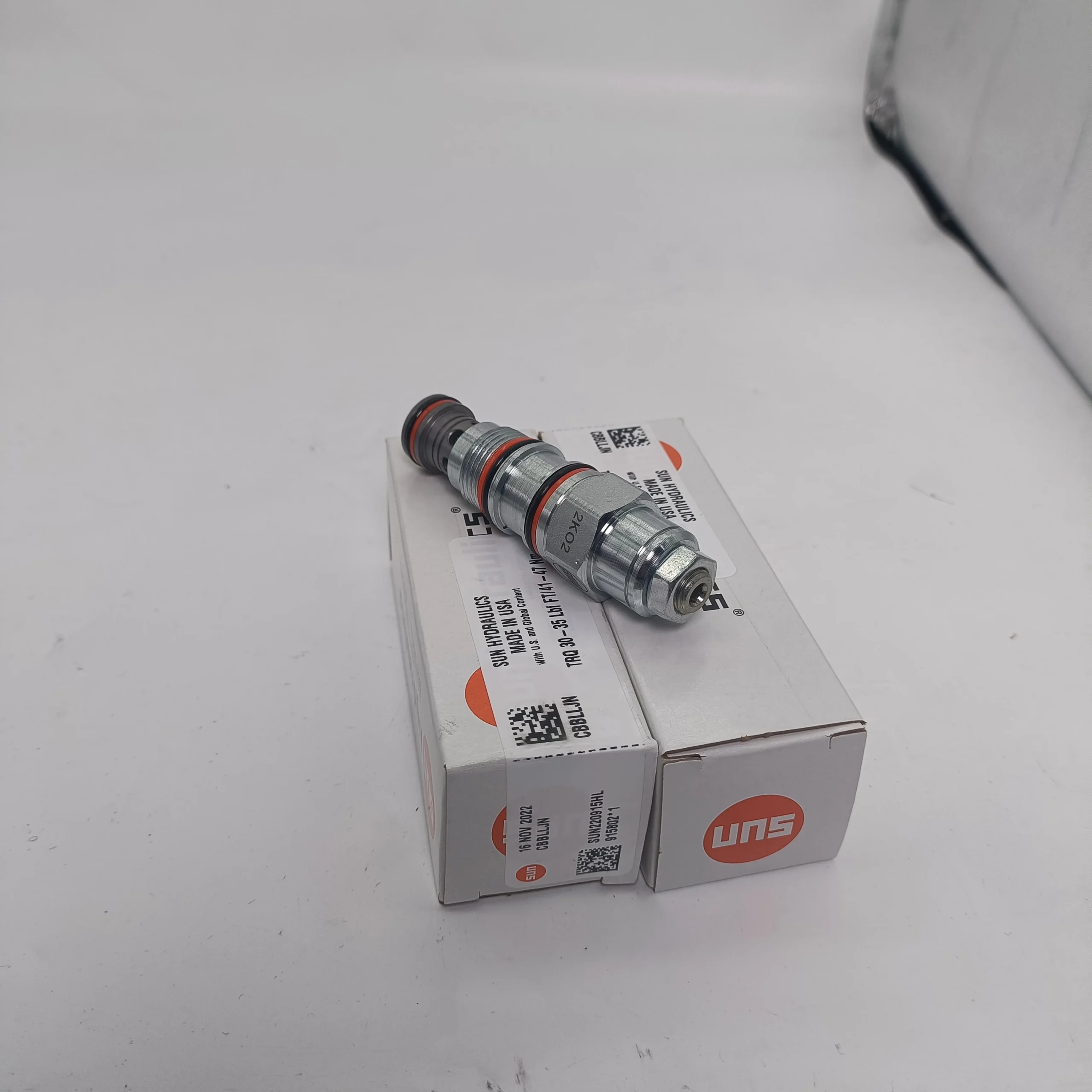

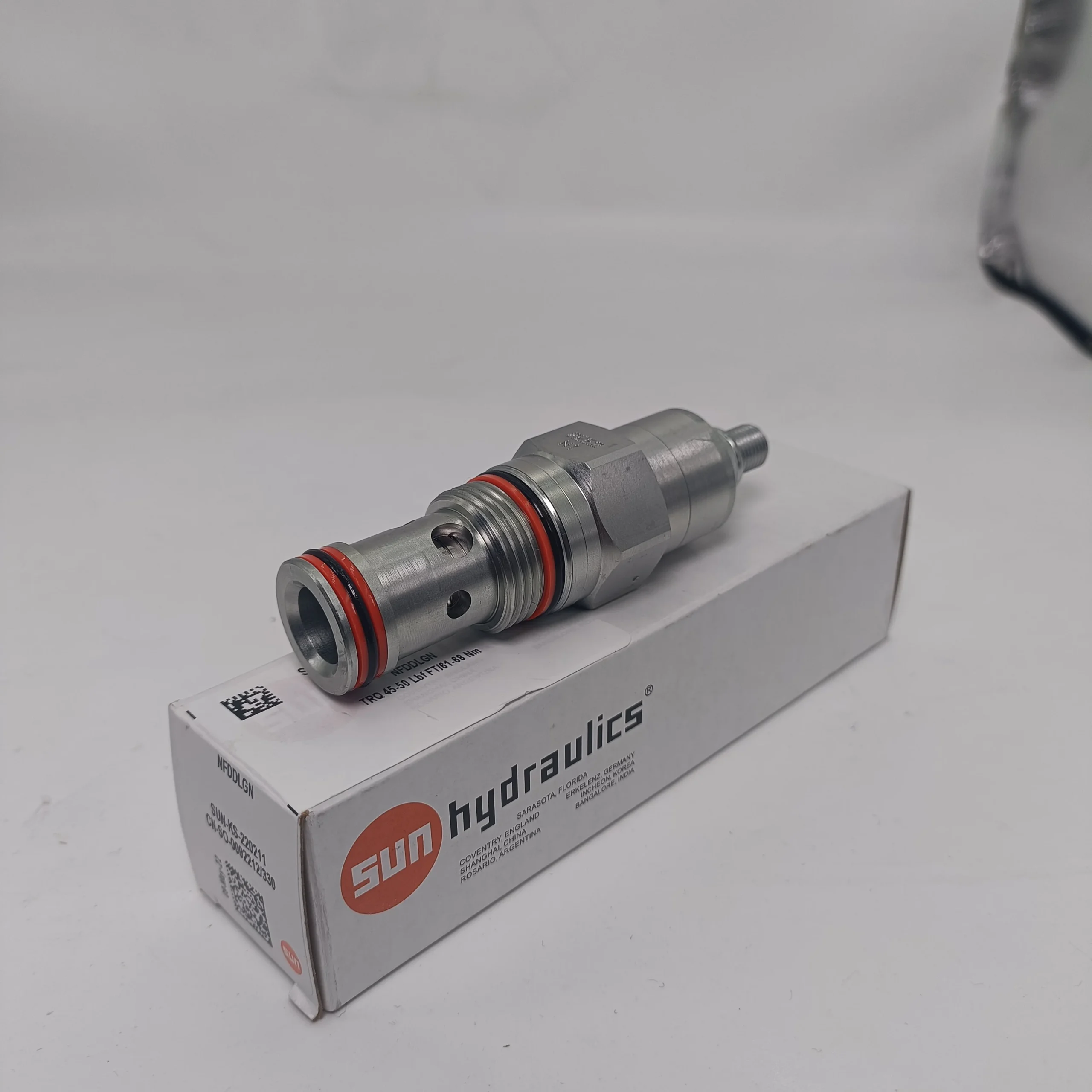

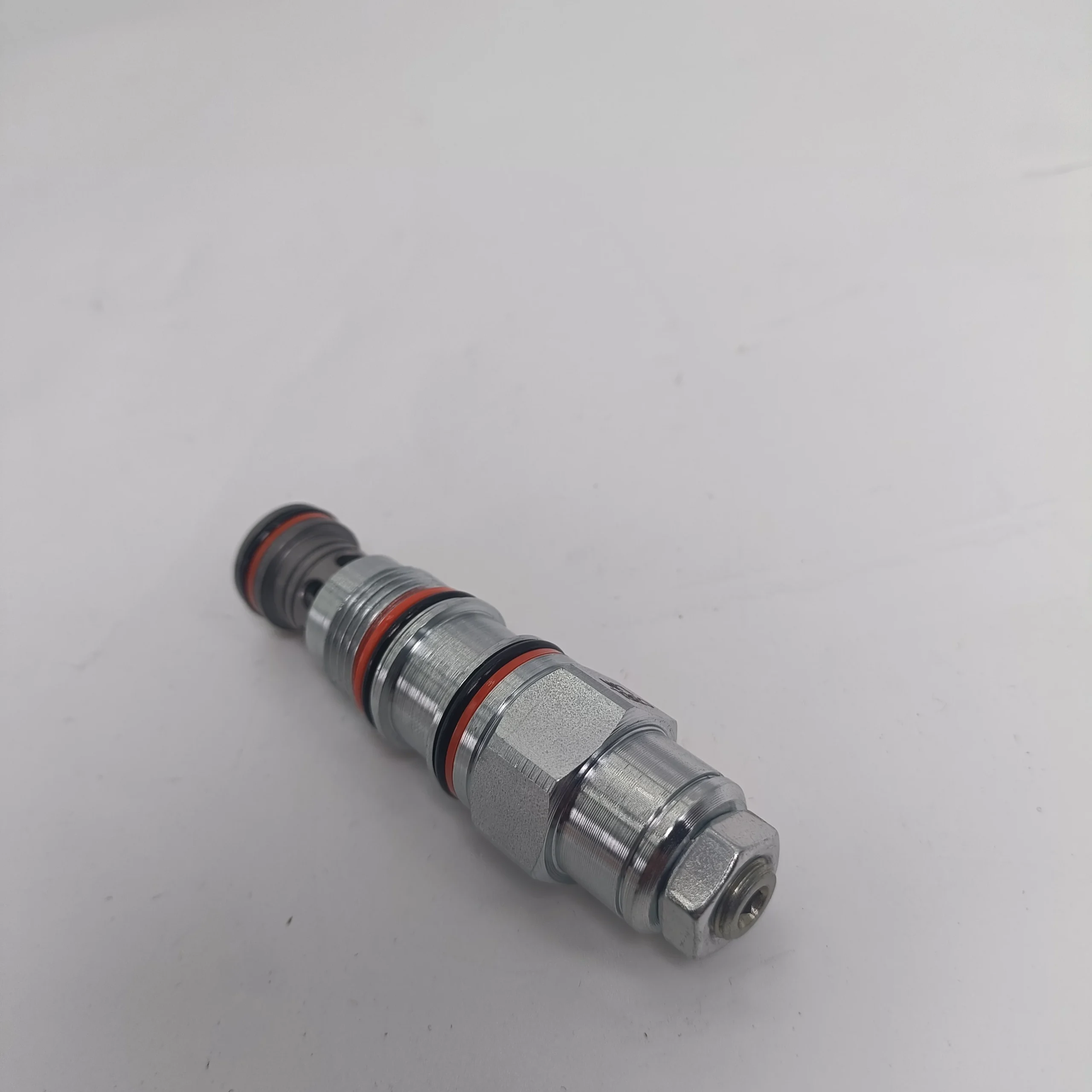

SUN Hydraulics Cartridge Valve | PRDB-KBN RPET-LAN DPBP-LAN | Pressure Control Valve

The SUN Hydraulics Compatible Cartridge Valve Series manufactured by Chengyuan Hydraulic comprises high-precision, heavy-duty fluid power control components engineered to fully match the rigorous original design specifications of SUN Hydraulics integrated manifold systems. This extensive premium range delivers seamless drop-in replacements for highly demanded market configurations, including pressure reducing/relieving valves (PRDB-KBN, PRDB-LSN, PRDB-KWN), pilot-stage controllers (RPET-LAN), balanced pilot logic elements (DPBP-LAN), sequence valves (SCCA-CAN), specialized pilot relief/throttling networks (RQEB-LAN, RQGB-LAN), and direct-acting relief valves (RDDA-LAN).

Functioning as the critical brain for pressure management and directional sequencing within compact multi-station hydraulic manifolds, a cartridge valve’s surface finish and dimensional stability dictate overall circuit reliability. SUN valves are celebrated for their proprietary Floating Construction concept. Chengyuan guarantees 100% original-place drop-in interchangeability across all variants regarding standardized cavity footprints (perfectly fitting SUN T-11A, T-2A, T-10A, and T-17A cavities), exterior mounting threads, shoulder sealing steps, and internal spring rate tolerances. Every component undergoes 100% simulated load and crack-pressure testing on automated digital benches before delivery, ensuring smooth modulation curves and minimized standby internal leakage under sustained high pressures.

Technical Specifications

• Compatible Brand: SUN Hydraulics (USA Standard Cartridge Infrastructure)

• Core Replacement Model Codes: PRDB-KBN, RPET-LAN, DPBP-LAN, PRDB-LSN, PRDB-KWN, SCCA-CAN, RQEB-LAN, RQGB-LAN, RDDA-LAN

• Standard Cavity Designations:

  • T-11A Cavity (Optimized for PRDB series reducing/relieving spools)

  • T-8A or T-10A Cavity (Optimized for RPET pilot controllers)

  • T-2A Cavity (Optimized for RDDA direct relief & SCCA sequence valves)

• Maximum Flow Capacity: Scalable from 30 L/min to 240 L/min (8 – 60 GPM) depending on designated cavity scaling (e.g., T-11A sustains nominal flows around 40-60 L/min)

• Maximum Operating Pressure: 350 bar (35 MPa / 5,075 psi) continuous duty

• Pressure Regulation Range Codes (e.g., A/B/W segments):

  • A Range: 100 – 3,000 psi (7 – 210 bar)

  • B Range: 50 – 1,500 psi (3.5 – 105 bar)

  • W Range: 150 – 4,500 psi (10.5 – 315 bar)

• Mechanical Adjustment Mechanisms:

  • L: Internal Hex Screw Adjust (Standard Tamper-Resistant)

  • K: Integrated Toolless Handknob Adjuster

  • C: Hex Screw with Protective Structural Plastic Cap

• Maximum Allowable Internal Leakage: Two-stage pilot models maintain leak rates $\le 30$ $cm^3/min$ at nominal reset thresholds; direct-acting types (e.g., RDDA) deliver absolute near-zero metal-to-metal sealing boundaries.

Key Technical Advantages:

• True Dual-Stage Floating Anti-Binding Construction: Mirrors and enhances SUN’s definitive floating cartridge architecture (double-surface concentricity balancing). Even if the cross-drilled manifold cavity exhibits minor concentricity error or experiences extreme deformation under high installation torque, the internal sliding spool remains completely decoupled from external clamping stresses, preventing the mechanical sticking or lazy shifting common in budget brands.

• Vacuum-Carbonitride Wear-Resistant Tribological Pairs: The central valve spools, poppets, and matching guide sleeves are machined from ultra-dense alloy steel hardened via vacuum nitrogen-carburization cycles to a surface toughness of HRC 60-63. This profile provides maximum protection against high-velocity fluid scouring and cavitation erosion, ensuring the calibrated pressure-slope calibration remains unchanged over millions of actuation cycles.

• Low-Hysteresis CFD-Optimized Flow Passages: Internal flow path borders are sculpted through precise hydrodynamic mapping to minimize localized pressure drop and energy fluid drag. During sequence trips or pressure clipping cycles, the poppet opens via a smooth, linear crack curve, holding mechanical hysteresis under 2% to eliminate pipeline harmonics and chatter.

• Premium Viton (FKM) High-Thermal Sealing Matrices: Equipped with heavy-duty fluorocarbon (Viton) O-rings backed by anti-extrusion structural backup rings as standard. The seals withstand continuous operation in harsh hydraulic oil environments ranging from -20°C to +120°C, resisting chemical degradation and preventing external interface leakage under severe hydraulic shocks.

Application Areas:

• Industrial HPU Manifold Assemblies: Regulating master pressure, multi-stage limiting, and pilot logic commands inside plastic injection molders, waste balers, and metal die-casting machines.

• Heavy-Duty Mobile Machinery: Secondary overload protection and buffering circuits inside rotary piling rigs, concrete pump trucks, and rough-terrain cranes.

• Precision Machine Tool Servo Circuits: Functioning as a high-precision lock or relief sub-loop in clamping and indexing circuits where low internal leakage and tight pressure slopes are mandatory.

Expert Maintenance Tips:

• Strict Torque Compliance via Calibrated Wrench: Although this series possesses excellent floating characteristics against stress distortion, it must always be secured using the correct tightening torque specifications. For instance, T-11A cavity valves (e.g., PRDB) require 40-50 Nm, while T-2A cavity valves demand 60-70 Nm. Over-torquing will deform threads and can fracture the cartridge hex shoulder.

• Rigid Cavity Inspections Before Swapping: Before inserting a replacement cartridge, thoroughly spray-wash and wipe down the internal manifold cavity. If the system previously suffered a component failure, use a bore-light to check the conical seating surface at the bottom of the cavity for scoring or step wear. If the manifold cavity is compromised, a new valve will still exhibit excessive internal leak rates.

• Orifice Protection on Pilot Valves (e.g., RPET-LAN): The micro-orifices inside two-stage pilot-operated valves often feature opening diameters under 1 mm. Fluid cleanliness must be held rigorously at ISO 4406 19/16/13 or cleaner. If the oil carries colloidal varnish, oxidized sludge, or fiber lint, the pilot orifice will plug instantly, causing the valve to lose pressure or fail to load.
