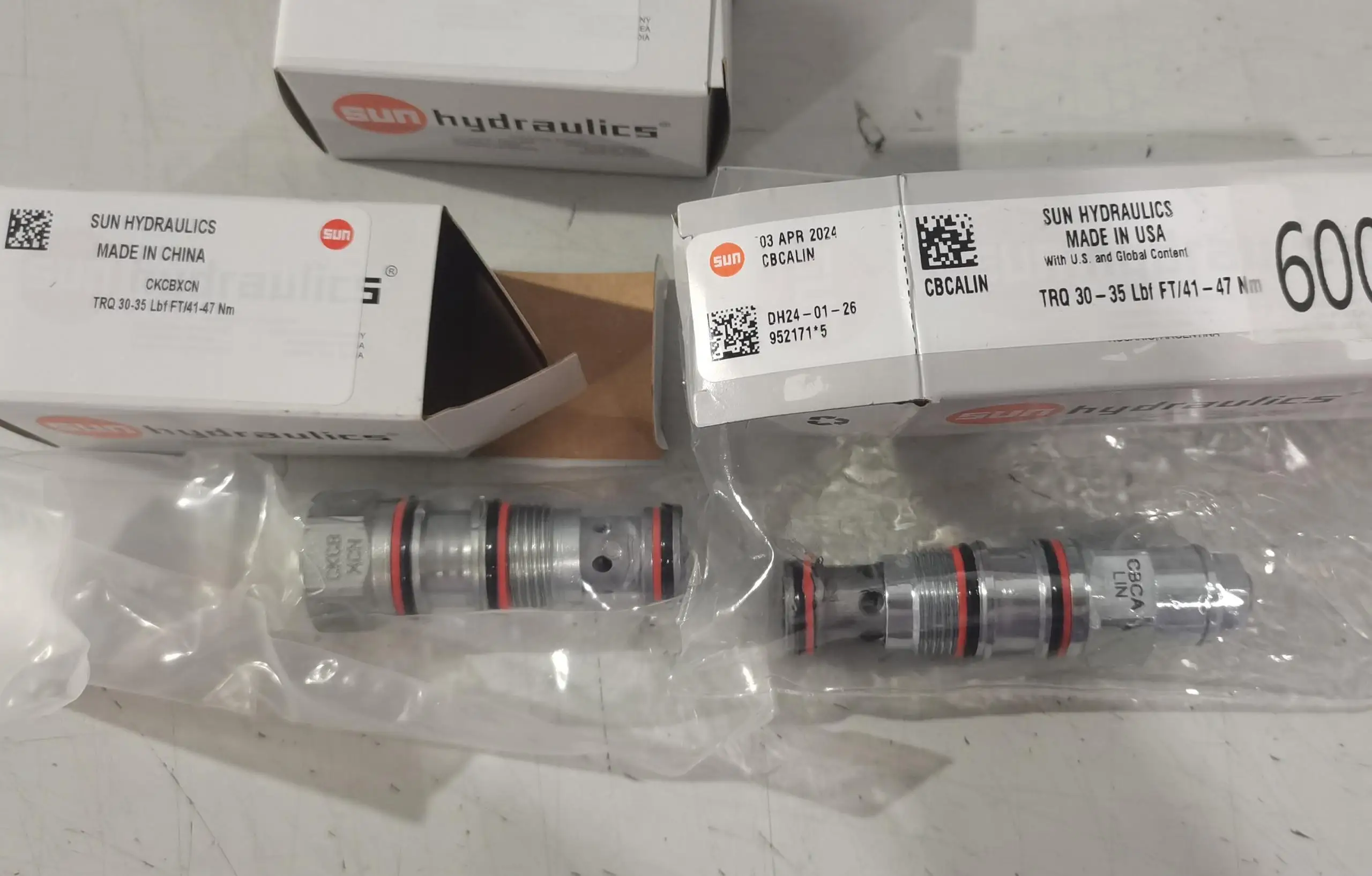

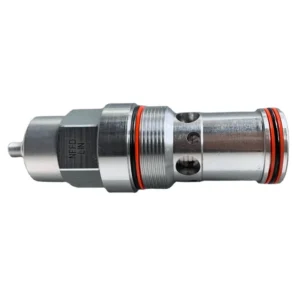

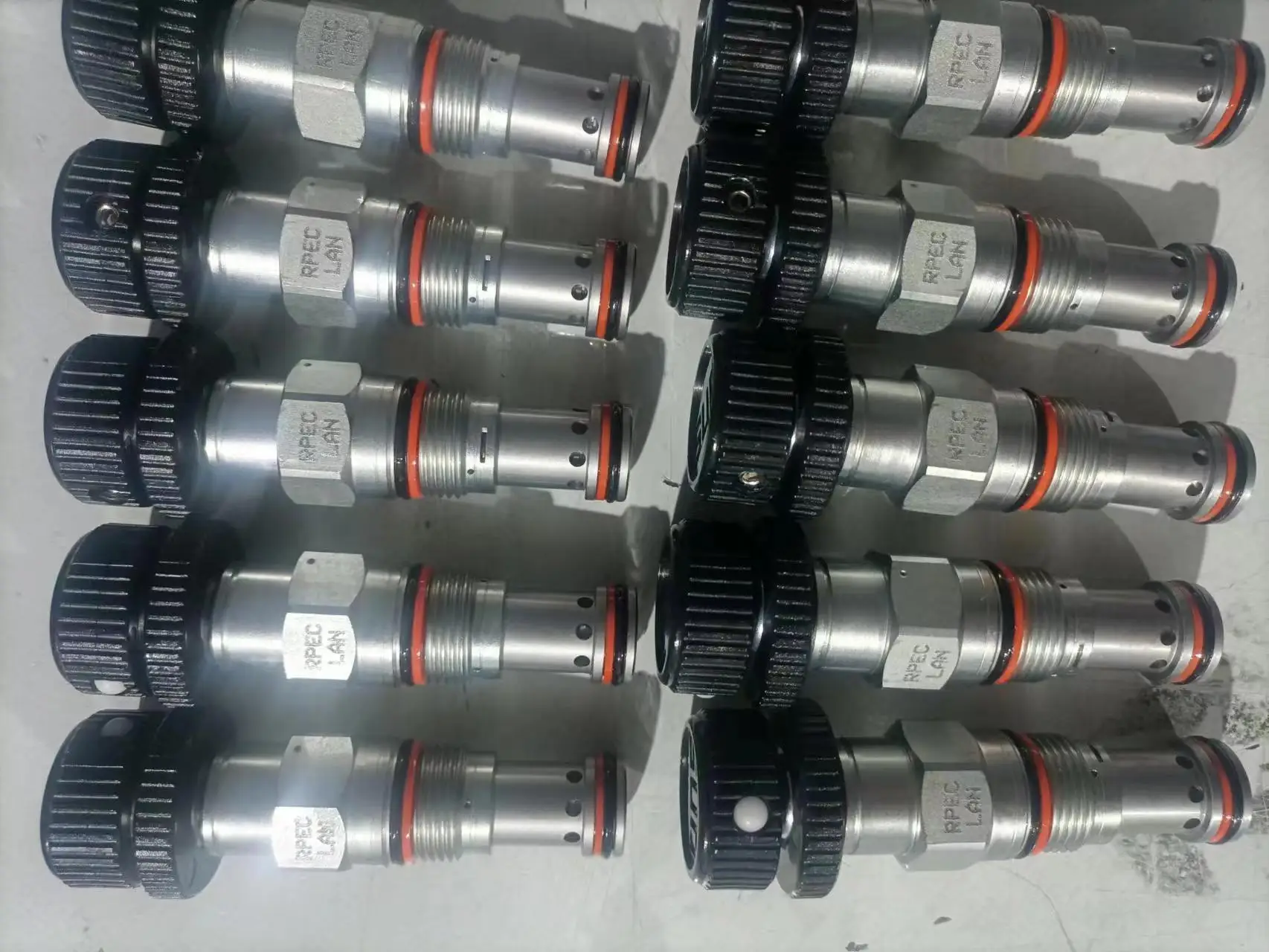

SUN Hydraulics Counterbalance Valve CBBD-LCN | MBGM-XIN CXHA-XAN CKCB-XCN | Cartridge Flow Valves

Chengyuan Hydraulic offers a premium range of SUN Hydraulics Compatible cartridge valves, engineered for the most demanding mobile and industrial hydraulic systems. This series includes high-performance Counterbalance Valves (CBBD), Pilot-to-open Check Valves (CKCB), Shuttle Valves (MBGM), and Standard Check Valves (CXHA). Designed strictly to SUN’s Cavity Standards (T-2A, T-11A, T-13A, etc.), our valves ensure 100% original-place interchangeability. Every valve is subjected to 100% simulated condition testing at 350 bar, guaranteeing precise control, zero-drift load holding, and exceptional durability for global OEM and aftermarket needs.

Technical Specifications

• Core Model Codes:

  • CBBD-LCN (Counterbalance: 4.5:1 ratio, $120\text{ L/min}$)

  • CXHA-XAN (Check Valve: $200\text{ L/min}$)

  • CKCB-XCN (Pilot-to-open Check: $60\text{ L/min}$)

  • MBGM-XIN (Shuttle Valve: $10\text{ L/min}$)

• Maximum Operating Pressure: $350\text{ bar (5000 psi)}$

• Rated Flow Capacity: From $10\text{ L/min}$ up to $480\text{ L/min}$ (Model dependent)

• Cavity Compatibility: T-2A, T-11A, T-13A, T-17A, T-163A, etc.

• Internal Leakage: Typical 5 drops/min for CBBD (at 85% of setting)

• Materials: Hardened alloy steel internals; Zinc-nickel plating for external corrosion resistance

• Seal Options: Buna-N (Standard) / Viton (High-temp available)

Key Technical Advantages

• Two-Stage Floating Construction: Utilizing the signature SUN floating design, the internal valve components self-align during operation. This prevents sticking caused by manifold machining tolerances, ensuring smooth actuation even under high-torque installation.

• Ultra-Precision Spool Grinding: The spool and cage are manufactured from high-strength alloy steel with vacuum heat treatment. The CBBD series provides excellent re-seat integrity, ensuring “zero-drift” performance for cylinder load-holding applications.

• Linear Flow Characteristics: Internal passages of CXHA and MBGM valves are optimized via CFD simulation to minimize pressure drop. This ensures a consistent linear response across varying oil viscosities and temperatures, enhancing machine controllability.

• High Fatigue Resistance: Equipped with premium springs tested for over 1 million full-load cycles. Our valves maintain stable pressure settings without drift, even in high-vibration and high-frequency pulse environments common in construction machinery.

Application Areas

• Mobile Machinery: Load holding and safety control for cranes, aerial work platforms, and excavator circuits.

• Industrial Presses: Directional control and logic circuits in rapid clamping systems.

• Custom Hydraulic Manifolds: Integrated directional and locking functions in various high-pressure power units.

Expert Maintenance Tips

• Strict Torque Management: Always use a torque wrench. Over-tightening can deform the valve cage and cause internal binding. Adhere to specified torque ratings (e.g., $40\text{–}50\text{ Nm}$ for T-11A cavities).

• Adjustment Security: For counterbalance valves like CBBD, ensure the locknut is secured after setting the pressure. Use protective caps to prevent moisture from corroding the adjustment threads.

• Fluid Cleanliness: To prevent premature wear of the precision seating surfaces, maintain system cleanliness at ISO 4406 17/15/13 or better using high-efficiency $10\mu\text{m}$ filtration.
