Sun Hydraulics Cartridge Valves | RBAP-MAN PRDB-LSN RBAE-LDN

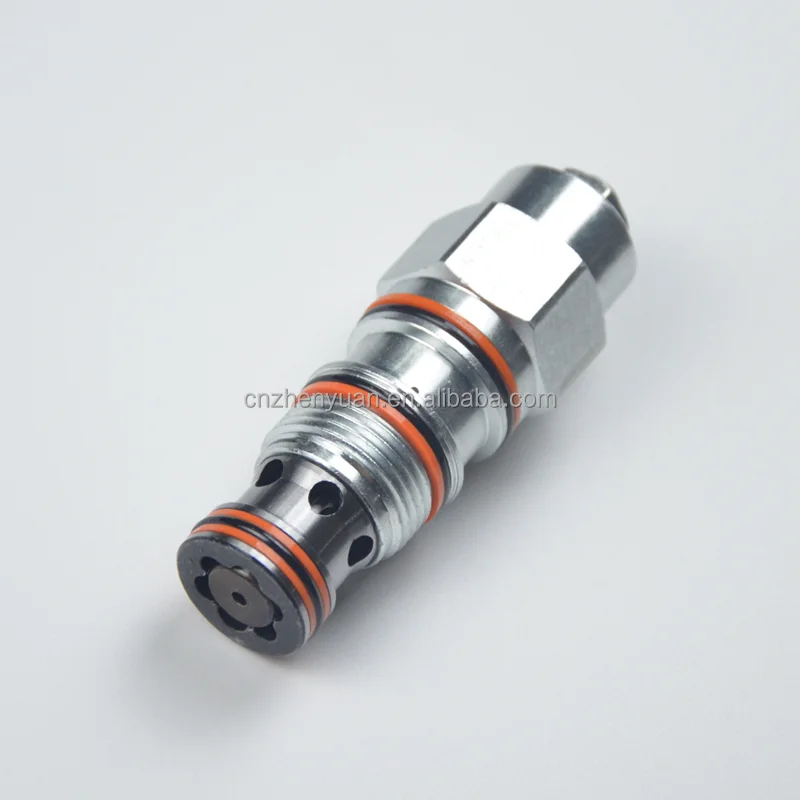

The Sun Hydraulics Interchangeable Series cartridge valves manufactured by Chengyuan Hydraulic (including models RBAP, PRDB, RDFA, RBAE, and NFDD) are high-performance control components engineered for the most demanding mobile and industrial hydraulic systems. These valves feature the iconic “Floating Construction” design, which utilizes a two-piece internal structure to isolate the valve’s critical components from installation-induced stresses and manifold inaccuracies. Whether for pilot-operated relief, direct-acting pressure reduction, or compensated flow control, Chengyuan products offer exact functional replication of original Sun components with 100% original-place interchangeability. Every valve is subjected to 100% dynamic simulated load testing to ensure zero-leak performance and rapid response timing under cyclic high-pressure conditions.

Technical Specifications :

• Brand Compatibility: Sun Hydraulics Interchangeable

• RBAP-MAN: Pilot-operated, balanced piston relief valve with air pilot. Flow: $200 L/min$; Max Pressure: $350 bar$.

• PRDB-LSN: Direct-acting, pressure reducing/relieving valve. Flow: $80 L/min$; Pressure Range: $10-200 bar$.

• RDFA-LBN: Direct-acting relief valve. Ultra-fast response for surge protection. Flow: $20 L/min$; Pressure: $3.5-105 bar$.

• RBAE-LDN: Pilot-operated, balanced piston relief valve. Flow: $100 L/min$; Pressure: $3.5-210 bar$.

• NFDD-KGN: Pressure compensated needle valve with bypass check (Handknob). Flow: $45 L/min$.

• Maximum Operating Pressure: Up to $350 bar$ (5000 PSI) for the entire series.

• Adjustment Options: L = Screw; K = Handknob; M = Air Pilot (For RBAP class).

• Seal Material: High-tensile Buna-N (Standard) or Viton (High temperature/Chemical resistance).

• Cavity Standards: Fully compatible with T-10A, T-11A, T-3A Sun cavities.

Key Technical Advantages:

• Signature Floating Construction Technology: The internal spool and seat assembly are decoupled from the outer sleeve, allowing the valve to “float” within the cavity. This compensates for any minor concentricity errors in the manifold machining and prevents spool binding even when excessive installation torque is applied.

• Hardened Alloy Friction Couples: Critical spools and poppets in models like RDFA and PRDB are processed with vacuum nitriding to achieve a hardness of $HRC 60-63$. This provides superior resistance against cavitation and abrasive contamination, ensuring a bubble-tight seal and long-term stability.

• Low Hysteresis Pressure Control: By precision-tuning the damping orifices and internal spring rates, our pilot-operated valves (e.g., RBAE) exhibit extremely low hysteresis. Pressure variation remains within $3\%$ of the set point even during aggressive flow rate ramps.

• Corrosion-Resistant Exterior Finish: Every valve body is treated with a zinc-nickel alloy plating, surpassing 1000 hours in salt spray testing. This makes Chengyuan valves ideal for outdoor mining, offshore, and construction equipment environments.

Application Areas:

• Construction Machinery: High-pressure pilot supply and overload protection for excavators and drill rigs.

• Industrial HPUs: Precision pressure switching for injection molding machines and metal presses.

• Lifting & Winch Systems: Reliable counterbalance and relief protection for heavy-duty lifting linkages.

Expert Maintenance Tips:

• Strict Torque Compliance: While the floating design is robust, we recommend using a calibrated torque wrench. For T-10A series, target $40-50 Nm$. Never use impact wrenches, as they can cause manifold material yield.

• Pilot Orifice Protection: Pilot-operated valves like RBAP and RBAE contain micro-orifices that are sensitive to debris. Maintain a system filtration level of at least $\beta_{10} \ge 100$ and monitor filter bypass indicators.

• Fluid Compatibility Verification: Always verify your hydraulic fluid type before installation. If using phosphate ester fluids, the standard Buna-N seals must be replaced with Viton to prevent seal swelling and subsequent control failure.
