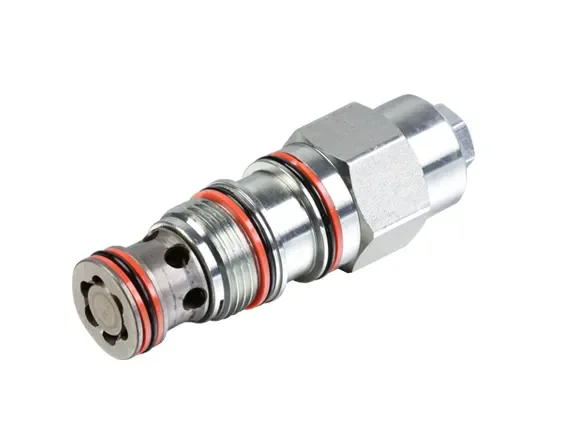

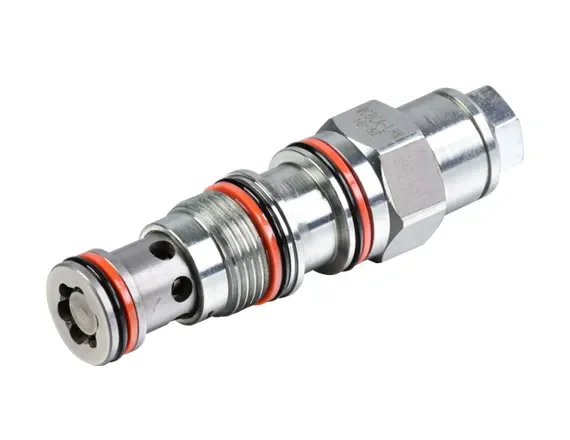

SUN Hydraulics CXDA LPDC Series Cartridge Valve | CXDA-XDN CXDA-XCN | LPDC-XHN LPDC-XFN

Chengyuan Hydraulic offers a high-performance SUN Hydraulics Compatible Series of cartridge valves, engineered for sophisticated direction and logic control in hydraulic manifolds. This series features the CXDA series free-flow check valves and the LPDC series normally-closed logic elements. Manufactured strictly to SUN’s Cavity Standards (T-5A for CXDA and T-163A for LPDC), our valves guarantee 100% original-place interchangeability. Each unit undergoes 100% simulated condition testing, demonstrating superior response and long-term stability at pressures up to 350 bar. They serve as reliable, high-efficiency alternatives for imported OEM cartridges.

Technical Specifications

• Representative Models: CXDA-XDN, CXDA-XCN, LPDC-XHN, LPDC-XFN, LPDC-LDN

• CXDA Max Flow Rate: 40 L/min (10 gpm)

• LPDC Max Flow Rate: 60 L/min (15 gpm)

• Maximum Operating Pressure: 350 bar (5000 psi)

• Cracking Pressure (LPDC): 3.5 bar (XFN), 10 bar (XHN) – varies by code

• Cavity Standards: T-5A (CXDA) / T-163A (LPDC)

• Internal Leakage: Less than 1 drop/min (ultra-tight sealing)

• Installation Torque: 45 – 50 Nm

• Surface Coating: Zinc-nickel plating for extreme corrosion resistance

Key Technical Advantages

• Floating Construction Technology: Following the signature SUN design philosophy, our valves feature a floating structure that allows for self-alignment. This eliminates the risk of spool binding caused by manifold machining tolerances or uneven torque, ensuring consistent high-speed response.

• Extreme Sealing Integrity: The CXDA check valve utilizes hardened alloy steel for the seat and ball. The near-zero leakage (less than 1 drop/min) ensures that actuators stay in position during load-holding or pressure-locking cycles.

• High-Flow Logic Design: The internal passages of the LPDC logic elements are optimized via CFD simulation. This maximizes the flow area while maintaining a compact footprint, significantly reducing pressure drop (ΔP) and improving system energy efficiency.

• Dynamic Operational Stability: LPDC elements are dampening-optimized for step responses. This effectively suppresses pressure spikes and mechanical vibrations during opening and closing, enhancing the smoothness of complex multi-circuit systems.

Application Areas

• Hydraulic Integrated Manifolds: Used as pilot logic control or reverse-flow protection in multi-functional blocks.

• Agricultural Machinery: Isolation check valves in load-sensing circuits for tractors and harvesters.

• Industrial Presses: Rapid discharge or pressure-holding control in auxiliary circuits.

Expert Maintenance Tips

• Torque Control: A torque wrench is mandatory. Cartridge valves are highly sensitive to torque; over-tightening can lead to micro-deformation of the valve sleeve.

• Fluid Cleanliness: Maintain system filtration at $10\mu\text{m}$. Contaminants are the primary cause of sluggish switching in logic elements.

• Cavity Inspection: Before installing the CXDA-XDN replacement, ensure the cavity is clean and apply a thin layer of clean hydraulic oil to protect the O-rings.
