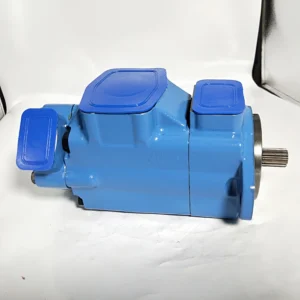

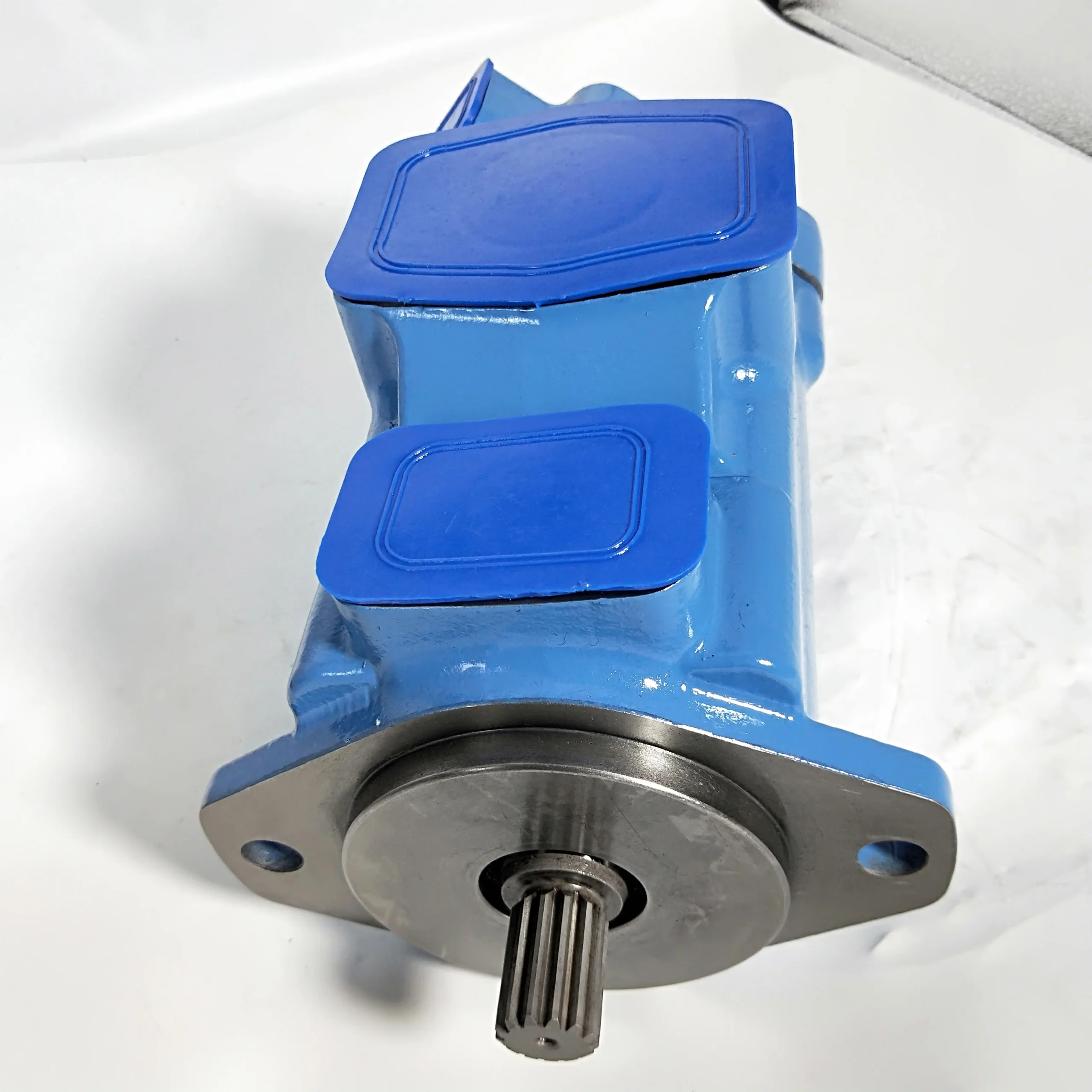

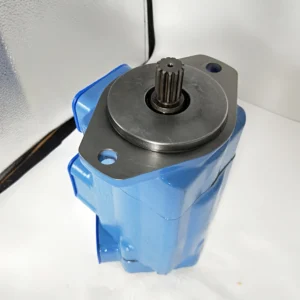

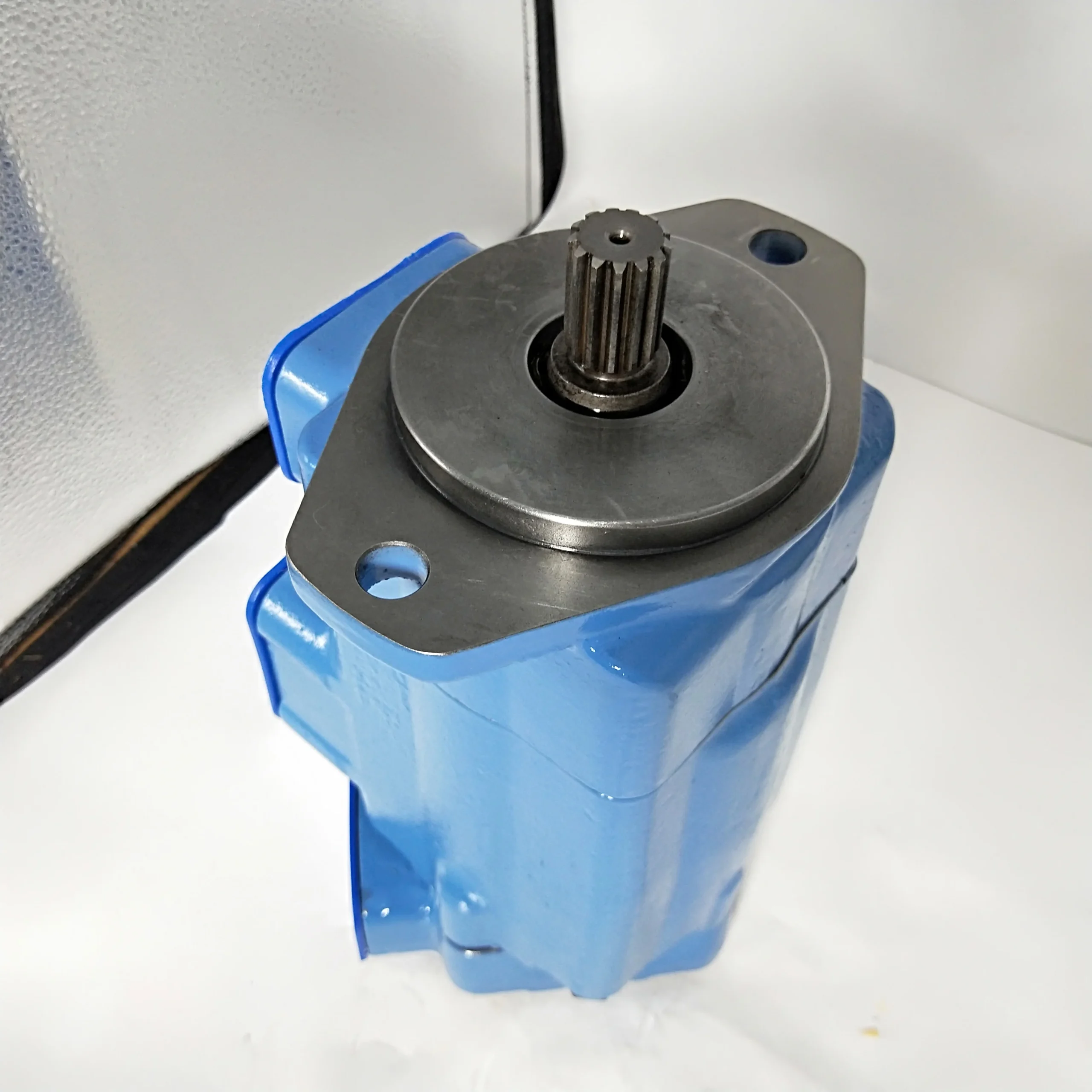

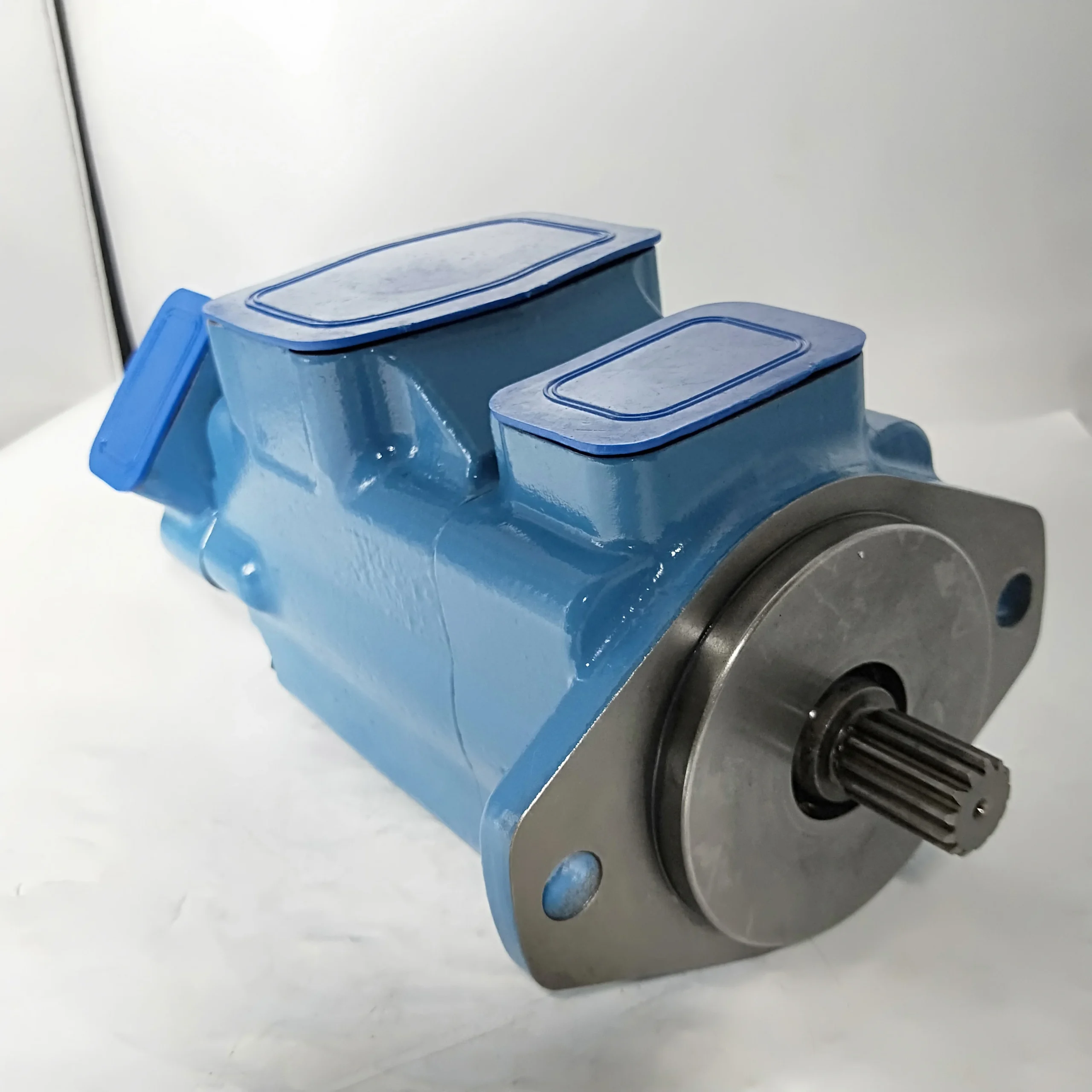

Vickers V/VQ Series Hydraulic Vane Pump Replacement 25VQ 35VQ 45VQ

The industrial-grade Vickers Compatible V/VQ Series Intra-Vane High-Pressure Hydraulic Pumps, manufactured by Chengyuan Hydraulic, are premium fluid-power generation components engineered for heavy-duty mobile machinery, modern plastic injection molders, automated die-casting presses, industrial shears, and oceanic marine deck systems. Utilizing an intra-vane design matrix and a hydrostatically balanced internal configuration, this line delivers high volumetric efficiency, smooth fluid delivery, and excellent resistance to fluid contamination.

This comprehensive pump portfolio targets the global B2B fluid power distribution network, alternative parts marketplace, and original equipment manufacturing (OEM) sectors. It provides 100% direct drop-in interchangeability across core Vickers single pump frame groups: 20V/20VQ, 25V/25VQ, 35V/35VQ, 45V/45VQ, and 50V/50VQ. For high-demand operational lines requiring exact structural specifications, Chengyuan provides precision-matched replacement assemblies, such as configuration models: 45VQ60A-11C20R, 45VQ75A-1A20L, 35VQ45A-1C20R, and standard industrial single units like 35V38A-11A-22R.

Chengyuan’s alternative vane pumps conform to universal SAE and industrial mechanical boundary guidelines. Key interface dimensions—including SAE standard A, B, C, and D two-bolt or four-bolt mounting flanges, heavy-duty straight keyed or involute splined drive shafts, and standard SAE 4-bolt split-flange oil port configurations—guarantee an exact match. During replacement or system overhaul cycles, maintenance mechanics can execute an instant swap-out without re-engineering structural brackets, altering high-pressure rigid lines, or matching custom shaft couplers.

In severe working conditions, such as high-frequency lifting cycles on construction cranes or high-pressure clamping shifts on die-casting machinery, hydraulic pumps face intense pressure spikes. To prevent premature wear, face score tracking, or volumetric drop-offs typical of low-grade replacements, 100% of Chengyuan’s V/VQ series pumps undergo 100% strict dynamic load testing on digital simulation blocks. Verified across maximum rated rotational limits and peak pressures, every pump is certified for flow rate stability, volumetric integrity under thermal saturation, and low noise levels to ensure dependable field operation.

Technical Specifications

• Product Classification: Intra-Vane Type High-Pressure Balanced Hydraulic Pump

• Compatible Reference Platform Series: Vickers / Eaton V Series (Industrial Standard Low-Noise) and VQ Series (Mobile Heavy-Duty with bronze-faced flexible plates and high-speed internal profiling)

• Frame Sizing Group Enclosure: 20V/VQ, 25V/VQ, 35V/VQ, 45V/VQ, 50V/VQ single configurations and front-stage cartridge matching for double pump networks

• Operational Rotational Speed Horizons: From 600 rpm up to 2700 rpm (VQ mobile variants support higher maximum transient speeds)

• Maximum Permissible Continuous System Pressure: Rated from 207 bar (3000 psi) up to 241 bar (3500 psi) depending on specific cartridge displacement size

• Technical Model Coding Decoupling & Precision Parameters:

  • Replacement Reference: 45VQ60A-11C20R

    • Configuration: 45VQ heavy-duty mobile series frame; “60A” designates a nominal delivery capacity of 60 GPM at 1200 rpm/0 bar (approx. 193 cc/rev geometric displacement); “11” denotes a standard 3″ SAE inlet port and a 1-1/2″ SAE discharge port; “C” marks a standard SAE C 2-bolt mounting flange layout; “20” represents a heavy-duty straight keyed output shaft; “R” denotes right-hand (clockwise) shaft rotation viewed from the drive shaft end.

  • Replacement Reference: 45VQ75A-1A20L

    • Configuration: 45VQ series high-displacement variant; “75A” marks a maximum nominal capacity (approx. 242 cc/rev geometric displacement); “1” denotes standard inline relative port positioning; “A” marks an SAE 4-bolt mounting flange variant; “20” denotes a straight keyed output shaft; “L” denotes left-hand (counter-clockwise) rotation.

  • Replacement Reference: 35V38A-11A-22R

    • Configuration: 35V industrial-grade standard quiet configuration; “38A” indicates a nominal capacity of 38 GPM (approx. 121 cc/rev geometric displacement); “11” matches standard industrial SAE ports; “A” represents the base mounting flange; “22” marks the active design generation revision code; “R” denotes clockwise rotation.

  • Replacement Reference: 35VQ45A-1C20R

    • Configuration: 35VQ mobile ruggedized series frame; “45A” denotes a nominal delivery capacity of 45 GPM (approx. 144 cc/rev geometric displacement); “1” denotes standard port alignment; “C” matches the SAE 2-bolt flange layout; “20” indicates a straight keyed shaft; “R” denotes clockwise rotation.

• Typical Mechanical Operational Efficiencies: Volumetric efficiency >= 94% under normal conditions; total mechanical efficiency >= 86%

• System Target Fluid Cleanliness Criteria: Must strictly comply with ISO 4406 19/17/14 parameters or better

• Average Base Net Component Weight (45V/VQ Series Example): Approx. 51.5 kg to 54.0 kg (113 to 119 lbs)

Key Technical Advantages

• Intra-Vane Hydraulic Balance Pressure-Loading Matrix: The vane structure comprises a primary blade with a secondary tracking tracking pin inside. Under operation, high-pressure system fluid is routed directly to the internal cavity between the vanes, generating a controlled outward force that maintains optimal tracking against the stator cam contour. This balances contact pressures, preventing the surface scuffing common in single-vane designs under high pressure while protecting volumetric efficiency.

• Hydrostatically Pressure-Loaded Flexible Bronze Side Plates: The internal cartridge kit is bordered by flexible, bimetallic bronze-faced wear side plates. A hydrostatic pressure balance chamber on the back of the plates scales tight sealing forces proportionally with system pressure spikes. This design self-compensates for thermal expansion gaps across the face clearances, minimizing internal bypass leakage even when operating continuously past 200 bar.

• Modular Drop-In Cartridge Kit Architecture: All high-friction rotating internal core components—including the stator cam ring, rotor, intra-vanes, and side plates—are integrated into a self-contained, modular cartridge kit. If field wear occurs, technicians can replace the complete cartridge module by removing the pump cover without disconnecting the pump body from the primary machine mounting brackets or hydraulic lines, restoring factory-spec performance within 10 minutes.

• Symmetrical Dual-Cam Balanced Stator Profile for Low-Noise Output: The interior stator cam ring profile is optimized via CFD modeling and features fully symmetrical, 180-degree opposed dual suction and discharge zones. This geometry balances the radial pressure forces acting across the rotor face, relieving the main shaft bearings of heavy radial load stress to ensure quiet operation and extend bearing life.

Application Areas

Chengyuan’s high-performance replacement Vickers V/VQ series intra-vane pumps deliver dependable fluid power and smooth output profiles across demanding machinery:

• Heavy Construction Machinery & Mobile Utility Fleets: Main power source for heavy road pavers, terminal port container cranes, refuse compaction trucks, and mobile core drilling rigs.

• Industrial Factory Automation & Materials Processing: Powering heavy plastic injection molding presses, metal scrap balers, high-tonnage sheet metal bending brakes, and centralized factory HPUs.

• Marine Engineering Deck & Sub-Chassis Propulsion: Governing high-load ocean anchor winches, primary electro-hydraulic steering gears, and weather-resistant exposed deck crane operations.

Expert Maintenance Tips

• Prior to Initial Machine Startup, Mandatorily Pre-Fill the Pump Inboard Housing Cavity with Clean System Hydraulic Fluid via the Highest Available Oil Port; Never Attempt a Dry Dry-Jog or Instant High-Speed Startup: Starting an empty vane pump creates severe dry metal-to-metal friction between the vane tips and the stator ring before fluid film lubrication is established. This will score the stator cam profile or weld the vane edges within seconds, causing catastrophic early pump failure.

• When Installing a New Modular Cartridge Kit, Confirm the Stator Cam Directional Arrow Matches the Rotational Direction of the Main Drive Prime Mover (R-Clockwise or L-Counter-Clockwise): The stator ring relies on precision-ground internal ramps for fluid induction and discharge transitions. Reversing the cartridge components relative to shaft rotation forces high-pressure fluid into vacuum ports, resulting in snapped drive shafts or shattered internal rotor elements upon startup.

• Ensure the Inlet Plumbing and Split-Flange Sealing Boundary Are Sealed; Avoid Using Restricted Suction Hoses or Excess Elbow Joints: Vane pumps are highly sensitive to fluid inlet starvation and cavitation. If a minor vacuum leak occurs or if a clogged suction strainer restricts flow, micro-bubbles will form within the oil. As these bubbles pass into the high-pressure discharge zone, they collapse violently (cavitation erosion), pitting the vanes and plates while creating a harsh, metallic rattle. Avoid air traps and keep inlet restrictions low.
