Vickers 45M 25M Series Vane Motor | 45M185A 25M42A High Torque Vane Motor

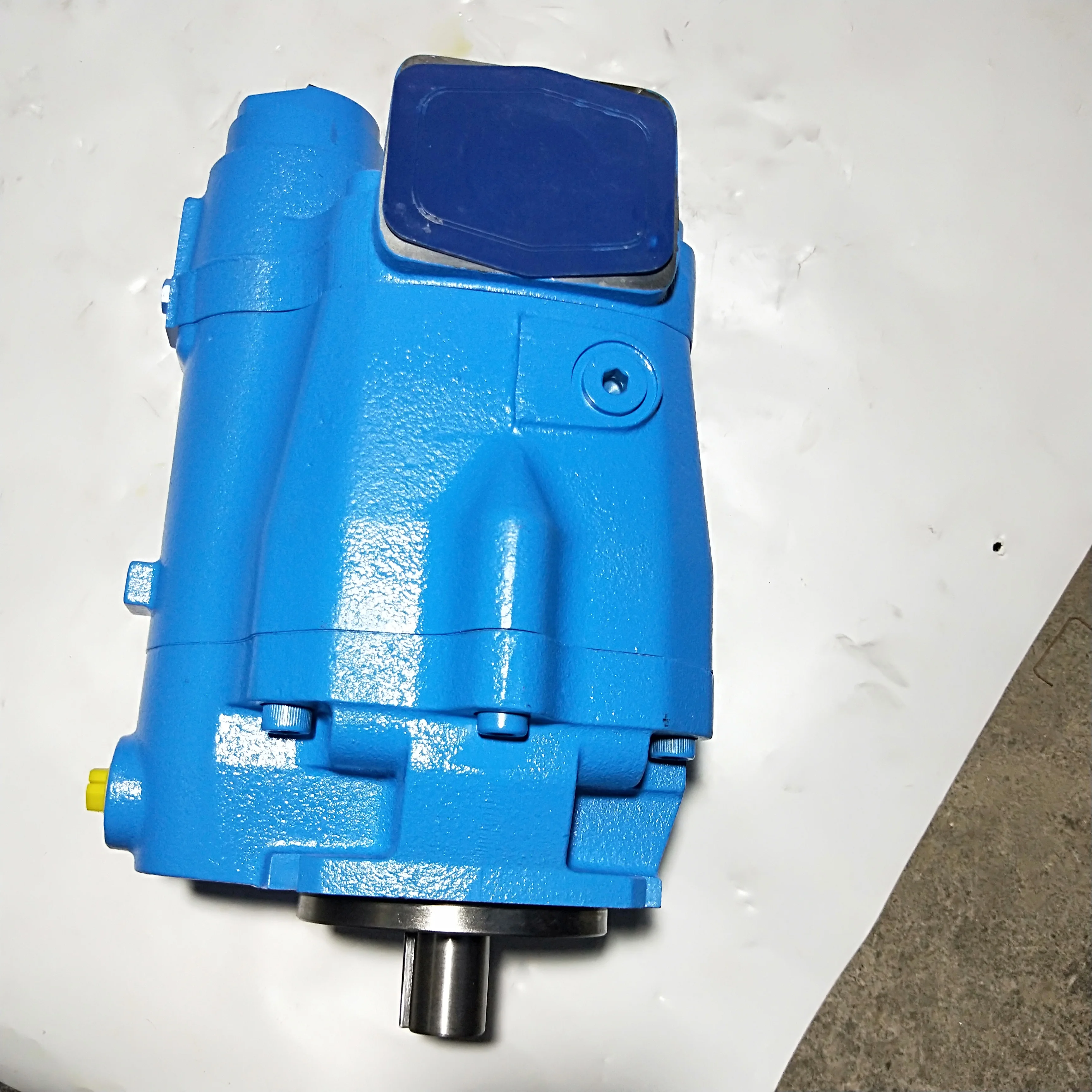

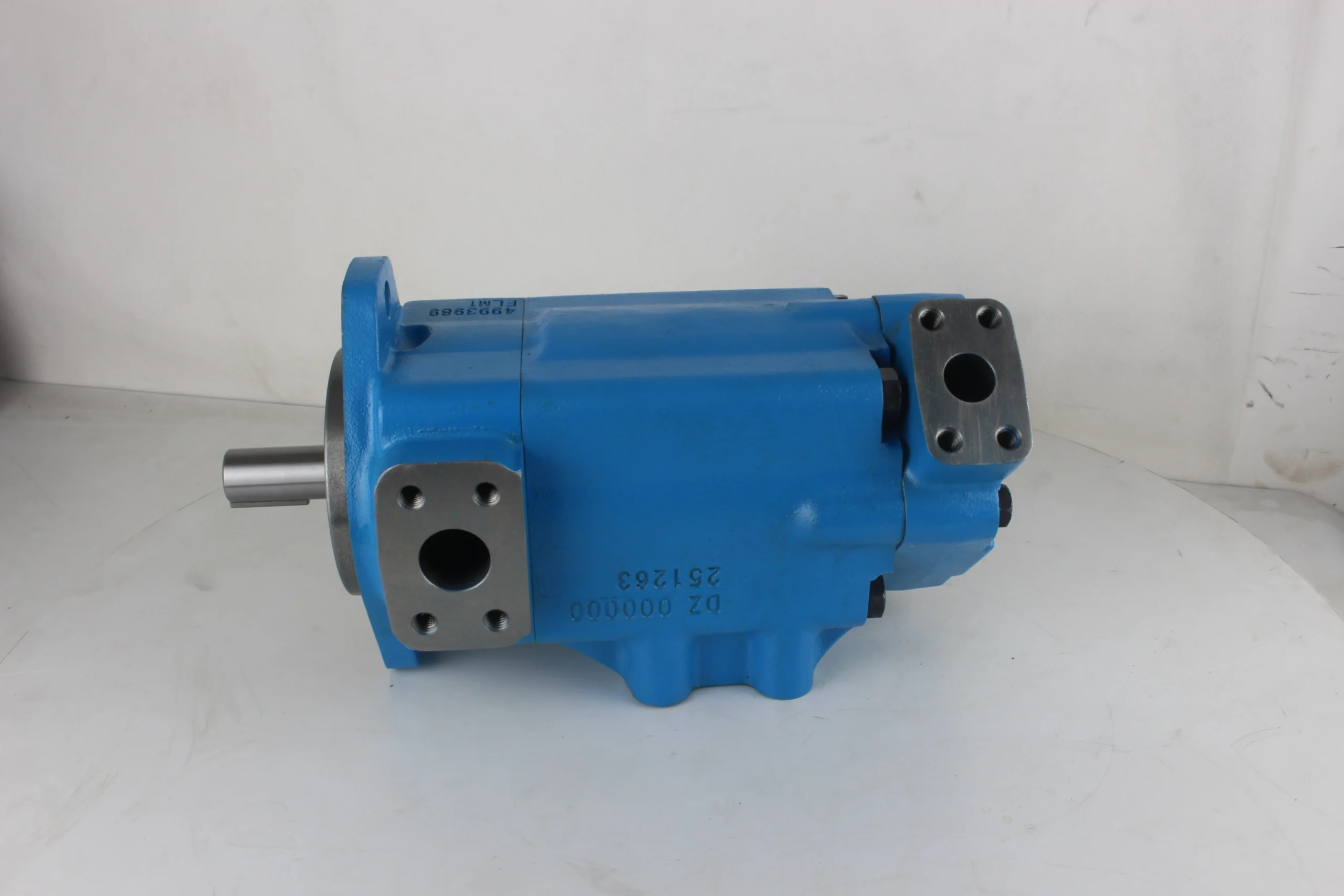

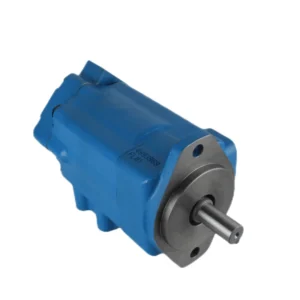

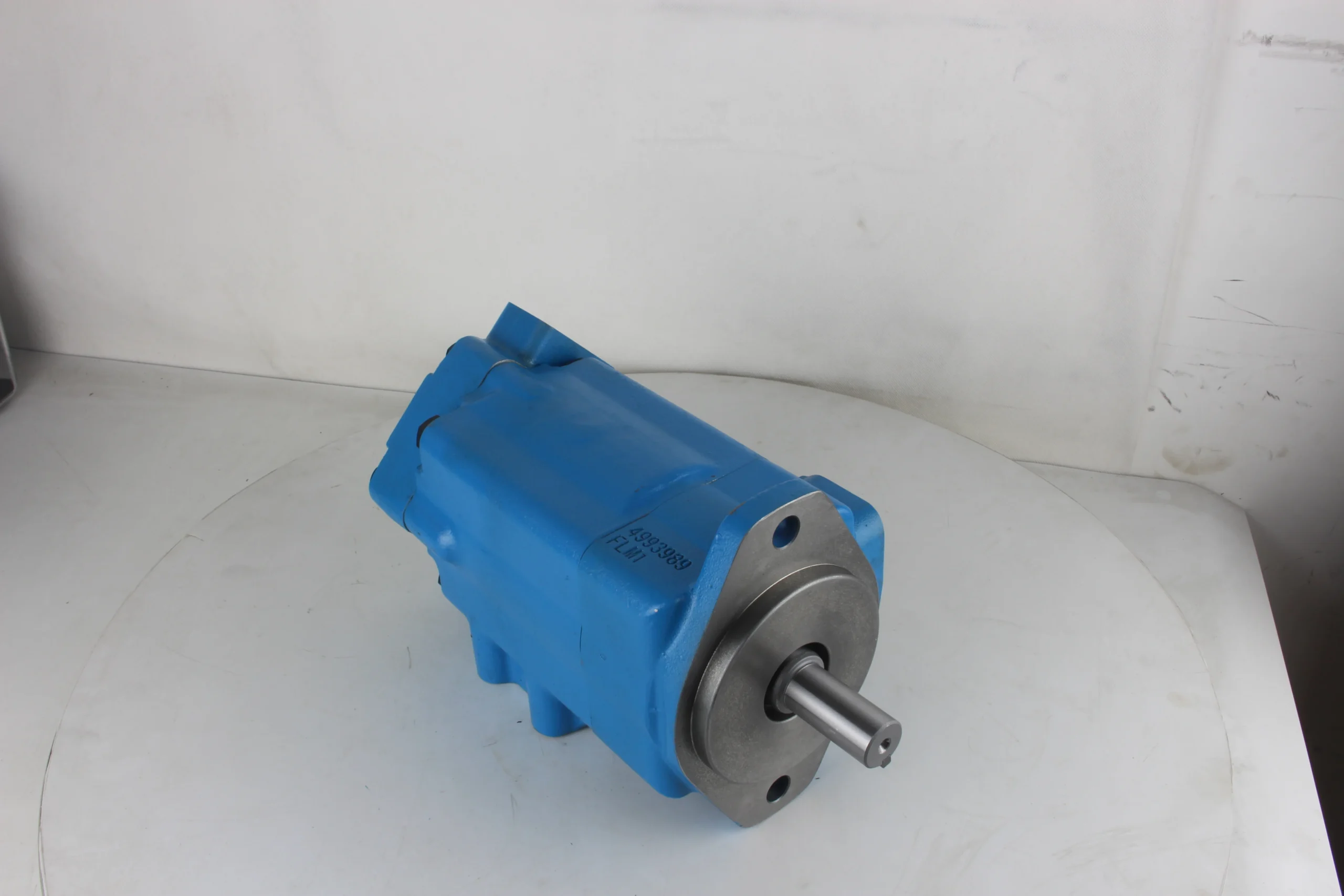

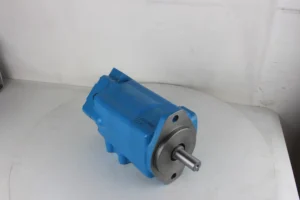

Chengyuan Hydraulic offers high-performance 45M and 25M series hydraulic vane motors, engineered to be premium replacements for Vickers industry standards. This series covers vital models such as 45M185A-1C20 and 25M42A-1C20, providing a high power-to-weight ratio for both industrial and mobile applications. Featuring a dual-action vane design, the 45M series is renowned for its operational smoothness and torque efficiency. Chengyuan ensures 100% Drop-in Interchangeability in mounting flanges, shaft splines, and porting locations. Backed by our advanced 100% Simulation Load Testing, every motor is verified for volumetric efficiency under high-pressure loads before shipment, ensuring long-term reliability and precise torque delivery for winches, injection molding machines, and conveyors.

Technical Specifications

• Compatible Brand: Vickers

• Model Codes: 45M185A-1C20 / 46M185A-1A20 / 25M42A-1C20

• Displacement (45M185A): 185 cm³/r (11.3 in³/r)

• Displacement (25M42A): 42 cm³/r (2.55 in³/r)

• Rated Pressure: 172 bar (2500 psi)

• Max Speed: 2400 r/min (Depending on specific model and load)

• Max Torque Output: Approx. 507 Nm (For 185 displacement at rated pressure)

• Structure Type: Two-step, dual-action vane design

• Rotation: Right Hand (R), Left Hand (L), or Bi-rotational

• Weight: 45M series approx. 32.7 kg; 25M series approx. 18.1 kg

Key Technical Advantages:

• Hydraulically Balanced Design: The internal rotor is perfectly balanced against radial hydraulic forces. This eliminates side loads on bearings, ensuring exceptional service life even under continuous 172 bar operation.

• Two-Step Vane Technology: Utilizing specialized vane tips, this design reduces friction against the cam ring while maximizing volumetric efficiency. It provides incredibly smooth performance and high breakout torque during the startup phase.

• Replaceable Cartridge Kit: Following the classic Vickers design, the motor utilizes a cartridge-based internal assembly. Users can perform onsite servicing by simply replacing the cartridge kit without removing the motor housing, significantly reducing maintenance downtime.

• Low Noise & Contamination Tolerance: Precision-machined cam profiles and vane matching ensure low noise levels. Additionally, vane motors are generally more tolerant of fluid impurities than piston motors, making them ideal for rugged mobile equipment.

Application Areas:

• Injection Molding: Screw drives and mold adjustment systems.

• Material Handling: Rail vehicle drives, industrial winches, and conveyor systems.

• Mobile Machinery: Excavator swing mechanisms and agricultural harvester drives.

• Marine Equipment: Anchor windlasses and deck crane control.

Expert Maintenance Tips:

• External Drain Line: 45M series motors MUST be connected to an external case drain line. Ensure the case pressure does not exceed 1.4 bar (20 psi). The drain line should return directly to the reservoir below the oil level.

• Filtration Standards: To protect the precision vane tips and cam surfaces, maintain a system filtration level of 10-25 microns. This prevents internal leakage caused by scoring.

• Air Bleeding & Startup: Upon initial installation, bleed air from the case via the drain port. Perform a “jog” start without load to ensure proper lubrication and pressure stabilization before full operation.
