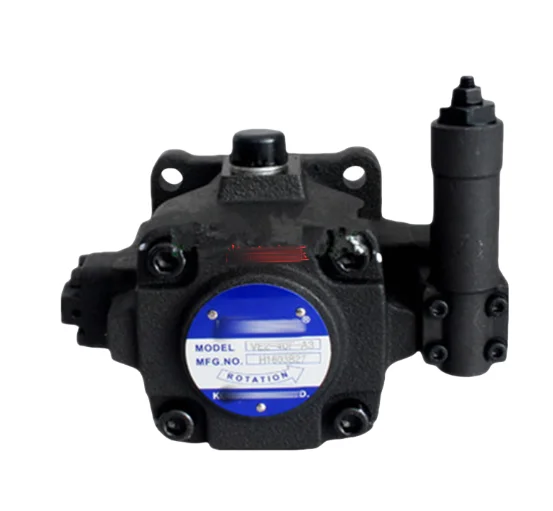

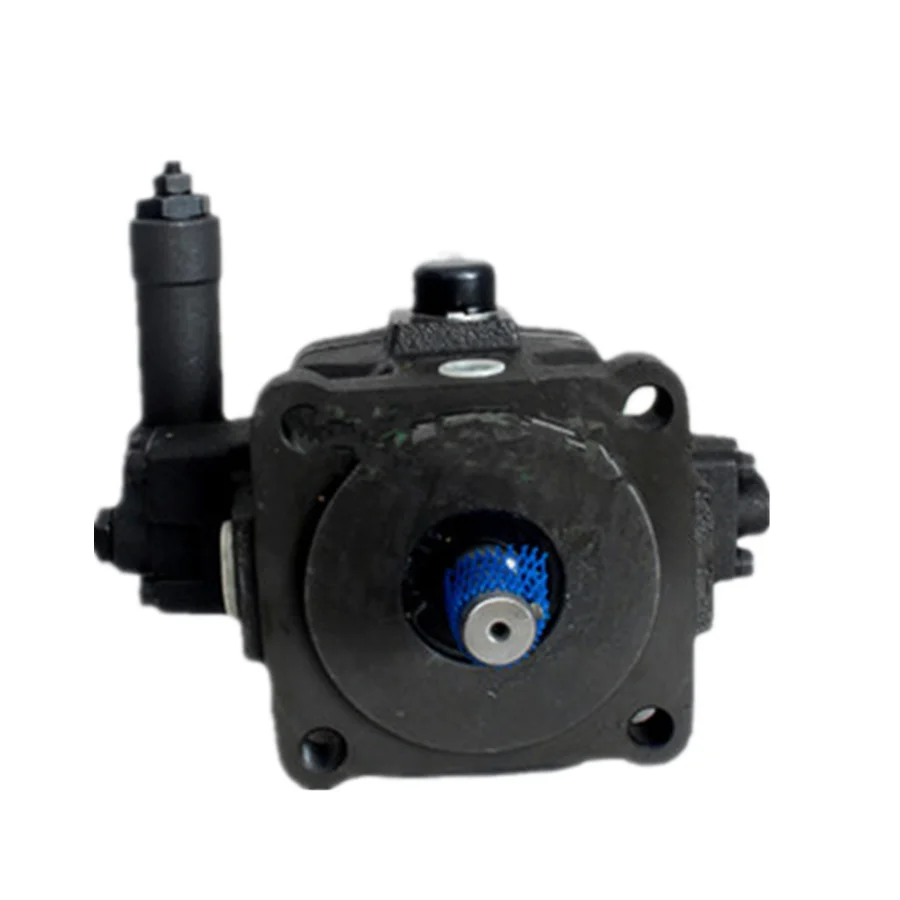

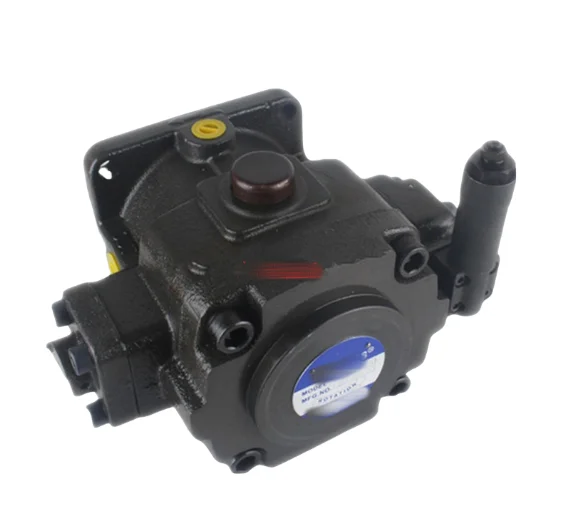

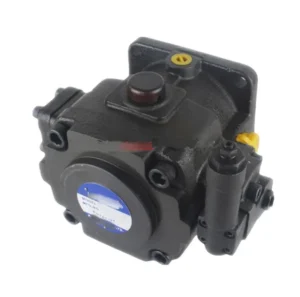

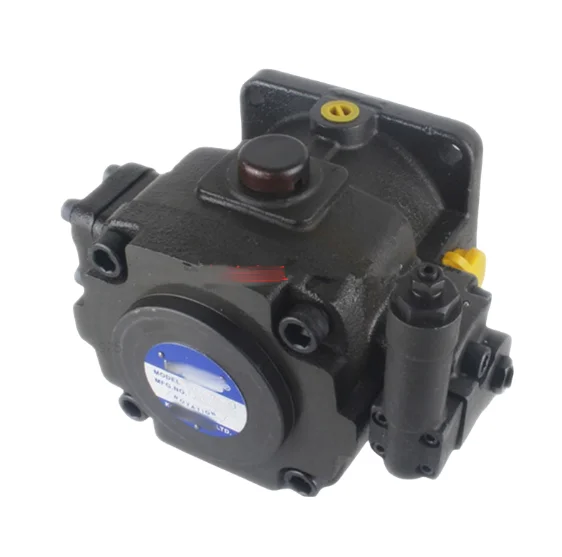

VP30 VP40 Variable Displacement Vane Pump | VP-40F VP-20F VP-15F | High Pressure Hydraulic Vane Pump

Chengyuan Hydraulic provides high-performance VP Series (VP30, VP40, etc.) variable displacement vane pumps, specifically engineered as high-efficiency power sources for medium-pressure hydraulic systems. This series includes models like VE1-40F-A3, VE2-40F-A4, VA1/VD1-12F-A3, and VP-20F/A3. By utilizing an eccentric adjustment mechanism between the rotor and stator, these pumps automatically regulate flow based on system load. Chengyuan guarantees 100% Drop-in Interchangeability for mounting flanges, shaft dimensions, and port patterns. Backed by our 100% Simulation Load Testing, each VP pump is validated for pressure compensation accuracy and noise levels, delivering superior energy efficiency for plastic machinery, machine tools, and industrial production lines.

Technical Specifications

• Series Models: VP30, VP40, VE, VA, VD series

• Specific Specs: VP-12F, VP-15F, VP-20F, VP-30F, VP-40F

• Displacement: 12 cm³/rev to 40 cm³/rev

• Max Operating Pressure (A3/A4): 70 Bar (7.0 MPa)

• Speed Range: 800 – 1800 r/min

• Pressure Adjustment Range: A2 (8-20 bar), A3 (15-35 bar), A4 (30-70 bar)

• Rotation Direction: Clockwise (Viewed from shaft end)

• Mounting Type: Flange Mount (F)

Key Technical Advantages:

• High-Efficiency Pressure Compensation: The integrated compensator valve automatically reduces displacement to a near-zero flow state once the preset pressure is reached, minimizing energy loss and oil heat generation.

• Ultra-Low Noise Operation: Featuring optimized cam rings and high-precision vane structures, the pump minimizes pressure ripples. Its operational noise is significantly lower than standard gear pumps under full-load conditions.

• Precision-Ground Components: Rotors, vanes, and side plates are crafted from high-quality alloy steel with vacuum heat treatment. Nano-level grinding on contact surfaces ensures high volumetric efficiency and a long service life under continuous pressure.

• Compact & Fast Response: Constructed with high-strength ductile iron, the internal adjustment mechanism responds instantly to system load changes, effectively shortening work cycles.

Application Areas:

• Footwear & Light Industry Machinery: For energy-saving pressure holding.

• Machine Tools: Hydraulic feed and clamping systems for grinders and milling machines.

• Injection Molding: Auxiliary circuits or main power for compact molding machines.

• Automation Lines: Hydraulic power units and air-oil combined systems.

Expert Maintenance Tips:

• Inlet Vacuum Control: Vane pumps are highly sensitive to cavitation. Ensure the suction line is perfectly sealed; suction pressure should be maintained between -0.03MPa and +0.03MPa.

• Initial Priming: Before the first run, fill the pump housing with clean hydraulic oil through the drain port. “Jog” the motor to bleed air until flow is steady to prevent vane damage from dry friction.

• Pressure Setting Regulation: Avoid operating above the A4 rated limit (7.0MPa) for extended periods. Always adjust the pressure setting gradually from low to high.
