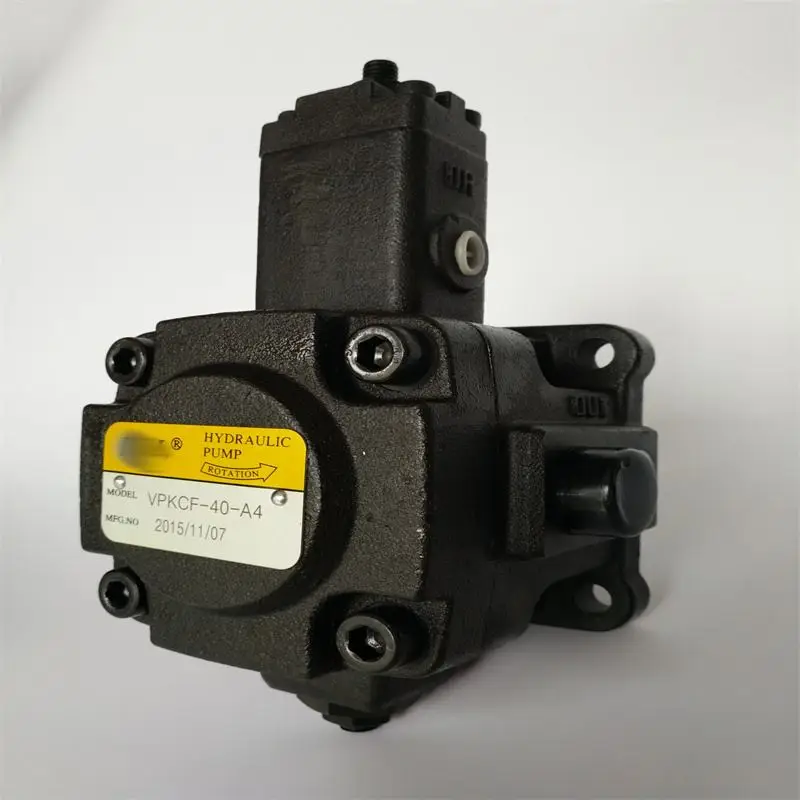

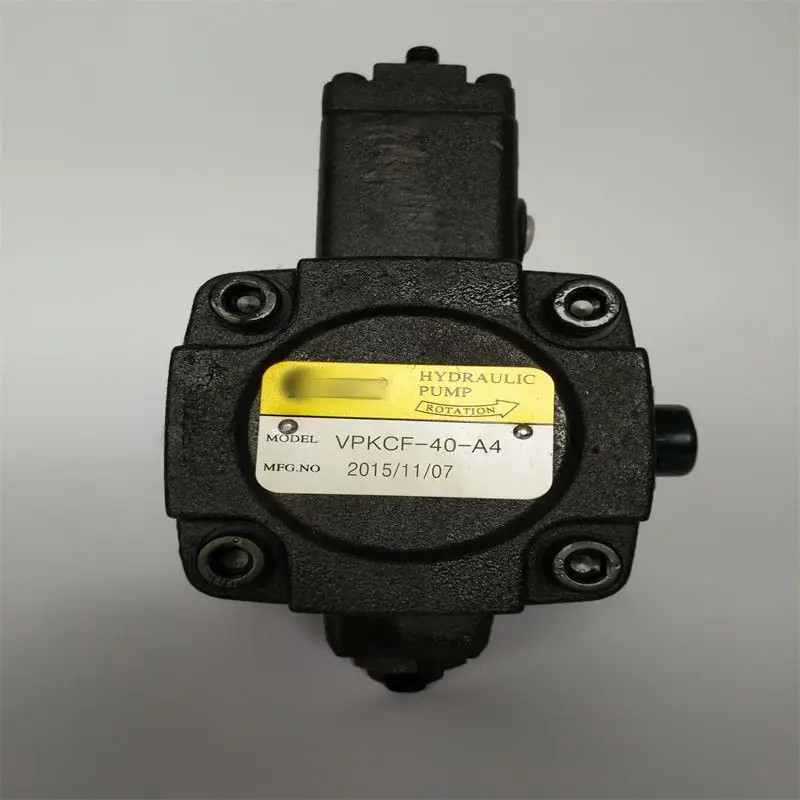

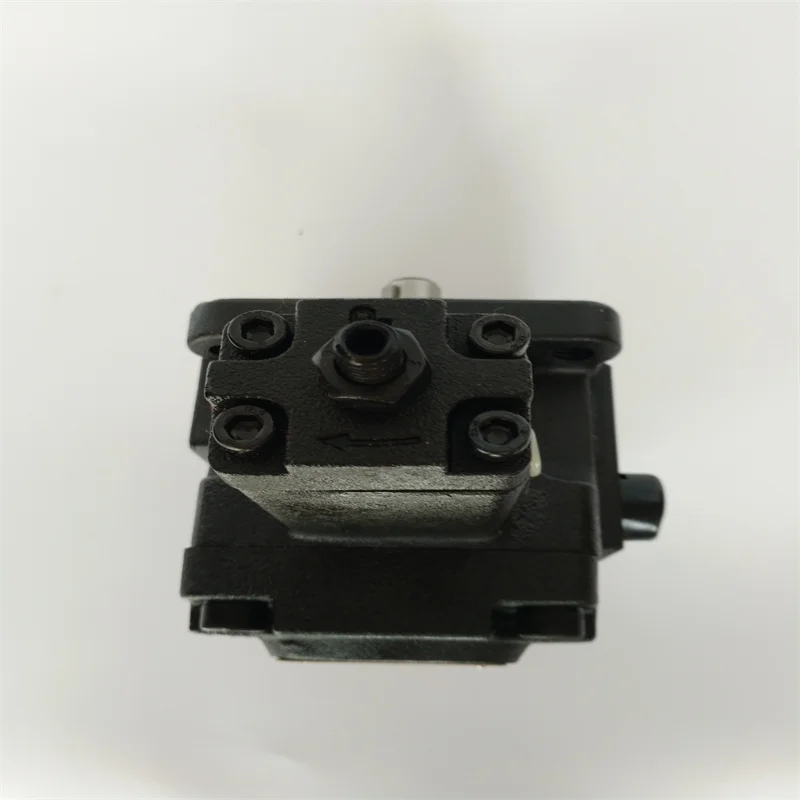

High-Low Pressure VPKC VPKCC VPKCF Series Variable Vane Pump VPKCF-40-A4

The industrial-grade VPKC / VPKCC / VPKCF Series Heavy-Duty Pressure-Compensated High-Low Double Variable Displacement Vane Pumps, engineered by Chengyuan Hydraulic, are specialized fluid power components designed for CNC machine tool cutting heads, automated workholding fixtures, shoe manufacturing equipment, waste balers, and automated light industrial production lines. Operating as an efficient option for systems requiring distinct high-speed approach and low-speed high-pressure holding cycles, this series utilizes an adaptive pressure-compensated mechanism to solve high energy consumption and system thermal rise issues.

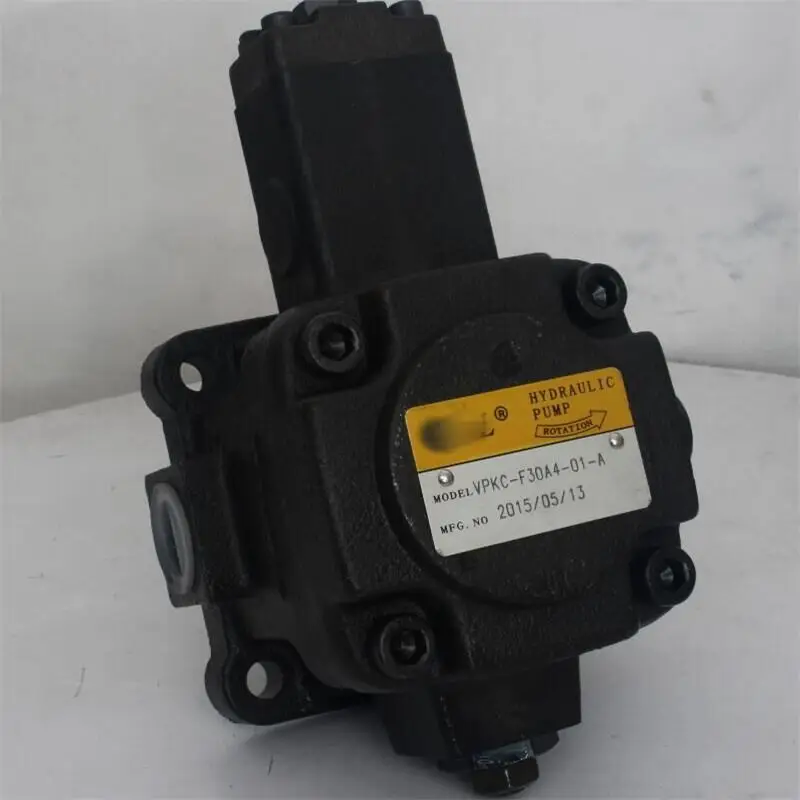

Structurally operating as a classic high-low double pump configuration, this platform integrates two separate variable vane cartridges inside a high-tensile housing. The sections share a single unified suction input port while feeding two completely independent high-pressure and low-pressure output fluid loops. This professional documentation profiles and replaces the core high-demand model codes and pressure stages within this design matrix, specifically focusing on the VPKCF-40-A4 and the flexible multi-displacement tandem combinations: VPKC-F40 / F20 / F12 / F30 / F8 – A3 / A4 / A0 / A1.

Decoded via international technical nomenclature, this series’ engineering designations specify:

• VPKC / VPKCC / VPKCF: Identifies the standard industrial variable double vane pump framework platform featuring internal cross-port fluid tracking or standard foot/flange configurations.

• F40 / F20 / F12 / F30 / F8: Establishes the individual nominal delivery ratings for either the front or rear cartridge section (e.g., 40 designates $40\text{ L/min}$, 20 designates $20\text{ L/min}$ rated @ 1800 rpm).

• A0 / A1 / A2 / A3 / A4: Specifies the adjustable pressure cut-off stage thresholds. A1 covers a range of 8–14 bar; A2 handles 15–22 bar; A3 spans 23–35 bar; and the heavy-duty A4 configuration provides a cutoff threshold of 35–70 bar (with reinforced variants sustaining intermittent cutoff peaks up to 100 bar).

Chengyuan’s alternative variable vane pumps match original equipment specifications regarding mounting flange pilots, bolt circle layout coordinates, standard straight keyed input drive shafts, and parallel fluid port thread sizes. This precision engineering guarantees 100% direct drop-in interchangeability for B2B procurement networks, hydraulic component distributors, and machinery manufacturing facilities. Field maintenance technicians can perform swap-outs without altering mechanical shaft couplings or modifying high-low circuit valve manifolds.

Variable vane pumps rely on complex internal movements involving a shifting cam ring (movable stator), hydraulic feedback compensator pistons, pressure-regulating spring stacks, and high-speed sliding vanes. Lower-grade alternatives are prone to sluggish pressure response, sticking feedback pistons, wavy abrasive wear on the inner cam ring surface, and massive internal friction that drives up oil temperatures. To ensure reliable performance, 100% of Chengyuan’s VPKC/VPKCF series double variable pumps undergo 100% strict dynamic load testing on digitized simulation benches. Each pump is evaluated for real-time cam-ring responsiveness during high-to-low circuit transitions, volumetric efficiency under continuous cutoff holds, and thermal stability before delivery.

Technical Specifications

• Product Classification: Pressure-Compensated High-Low Dual Variable Displacement Vane Pump

• Compatible Reference Platform Series: Industrial VPKC / VPKCC / VPKCF Variable Vane Architecture Standard

• Core Technical Model Configuration Sample: VPKCF-40-A4

• Tandem Section Flow Rating Spectrum (@ 1800 rpm):

  • Front/Rear Cartridge Delivery Options: 8 L/min, 12 L/min, 20 L/min, 30 L/min, 40 L/min

  • Standard Delivery Combinations: F40/F40 (Dual-40 high volume configuration), F40/F20 (Standard high-low configuration), F30/F12, etc.

• Pressure Adjustment Cut-Off Matrix Stages:

  • A0 Stage Threshold: 5 to 7 bar

  • A1 Stage Threshold: 8 to 14 bar (Engineered for low-pressure cooling or high-volume indexing loops)

  • A2 Stage Threshold: 15 to 22 bar

  • A3 Stage Threshold: 23 to 35 bar

  • A4 Stage Threshold (Heavy Load Standard): 35 to 70 bar (Continuous maximum peak cutoff capability up to 100 bar)

• Permissible Operational Rotational Speed Range: 800 rpm to 1800 rpm (Optimized for standard 4-pole electric motor speeds, typically 1450 rpm to 1750 rpm)

• Input Drive Shaft Specification: Metric or Imperial standard parallel straight keyed shaft

• Axial Clearance Compensation Mechanism: High-accuracy bimetal wear plates featuring pressure-loaded self-aligning balance tracks

• Permissible Continuous Operating Temperature Spectrum: -10°C to +65°C

• Recommended Medium Hydraulic Fluid Viscosity Profile: 32 to 68 cSt (Premium anti-wear hydraulic oil ISO VG46 is highly recommended)

Key Technical Advantages

• Tandem Single-Shaft High-Low Integrated Flow Architecture: The VPKC/VPKCF series houses two separate variable vane cartridges inside one compact casing driven by a single high-tensile shaft. When a rapid approach is needed, both sections combine to deliver maximum high-volume flow. During the high-pressure holding phase, the low-pressure section unloads back to the tank at near-zero pressure, while the high-pressure section (such as an A4 stage) independently sustains the holding force. This eliminates the need for a secondary electric motor, reducing system footprint and assembly costs.

• Pressure-Compensated Auto-Response Cam Ring Mechanism: The internal movable cam ring is balanced between an adjustable heavy-duty spring stack and a hydraulic feedback compensator piston. When system pressure crosses the set cutoff threshold (e.g., 70 bar on an A4 model), the feedback piston overcomes the spring force to shift the cam ring toward a concentric position relative to the rotor. Output flow drops near zero, supplying only enough fluid to compensate for system leakage and eliminating the energy waste of standard fixed pumps dumping over relief valves.

• Bi-Metal Pressure-Loaded Float Thrust Plates Construction: The vane cartridges incorporate precision-ground bimetal wear plates with pressure-loaded balance zones on the rear face. As operating pressure increases, fluid backpressure presses the plates against the rotor and vane sides. This dynamic axial clearance control enables the VPKCF-40 to maintain a volumetric efficiency $\ge 90\%$ under continuous high-pressure holding conditions, reducing internal leakage and ensuring consistent response.

• 12-Vane Precision Rotor Geometry for Quiet Operation: The internal rotor features a 12-slot design housing precision-ground, alloy steel vanes with optimized radius tips. The 12-vane layout provides excellent fluid balance and dampens output flow pulsations. When driven by a standard 4-pole electric motor, this configuration keeps operating noise below 65 dB(A) even during dead-head high-pressure holding cycles, meeting modern factory noise control standards.

Application Areas

Chengyuan’s high-performance replacement VPKC/VPKCC/VPKCF series variable double vane pumps deliver efficient, reliable fluid power across high-low cycle industrial machinery platforms:

• High-Precision CNC Machine Tools & Machining Centers: Power sources for automated workholding and fixture clamping blocks, CNC hydraulic chuck networks, and slide feed paths for cutting heads.

• Automated Footwear & Leather Processing Machinery: Primary hydraulic power for automated lasting machines, sole attaching presses, hydraulic die clickers, and material embossing equipment.

• Compacting Equipment & Light Industrial Automation: Main pump systems for industrial waste balers, scrap plastic compacting stations, and high-speed parts indexing loops on automated assembly lines.

• Woodworking Machinery & Metal Forming Presses: Power units for high-frequency automatic wood edge banders, automated panel laminators, and fast-approach mold closing and holding systems on light hardware stamping presses.

Expert Maintenance Tips

• The Pump Casing Must Be Fully Pre-Primed with Clean Hydraulic Oil via the Top Fill Port Before Initial Startup or After a Extended Shutdown Period: Variable vane pumps rely entirely on fluid inside the housing to lubricate internal contact zones and establish a hydrodynamic oil film during initial rotation. Running the pump dry causes the vanes to strike the dry inner cam ring under centrifugal force, scoring the stator surface within seconds and causing permanent pump failure.

• The Suction Line Must Be Dedicated, Route Directly to the Tank Base, and Avoid Suction Strainers Finer Than 150 Mesh: Variable vane pumps are sensitive to suction cavitation. Clogged strainers or air leaks in the intake hose can cause cavitation bubbles to collapse violently inside the pump, leading to pressure fluctuations and spring vibration. Ensure the suction path is sealed and the strainer’s flow capacity is rated for at least 2.5 times the pump’s nominal delivery.

• When Configuring Pressure-Regulating Screws on A3 or A4 High-Pressure Sections, Do Not Force the Screw to its Absolute Mechanical Limit: Vane pump pressure regulation operates by adjustment of internal spring pre-load. Forcing the screw down tightly can bottom out the spring coils. This prevents the cam ring from shifting to its concentric position during cutoff cycles, turning the unit into a fixed-displacement pump that can overload the drive motor and overheat the fluid within minutes. Adjust gradually while monitoring a system pressure gauge.
