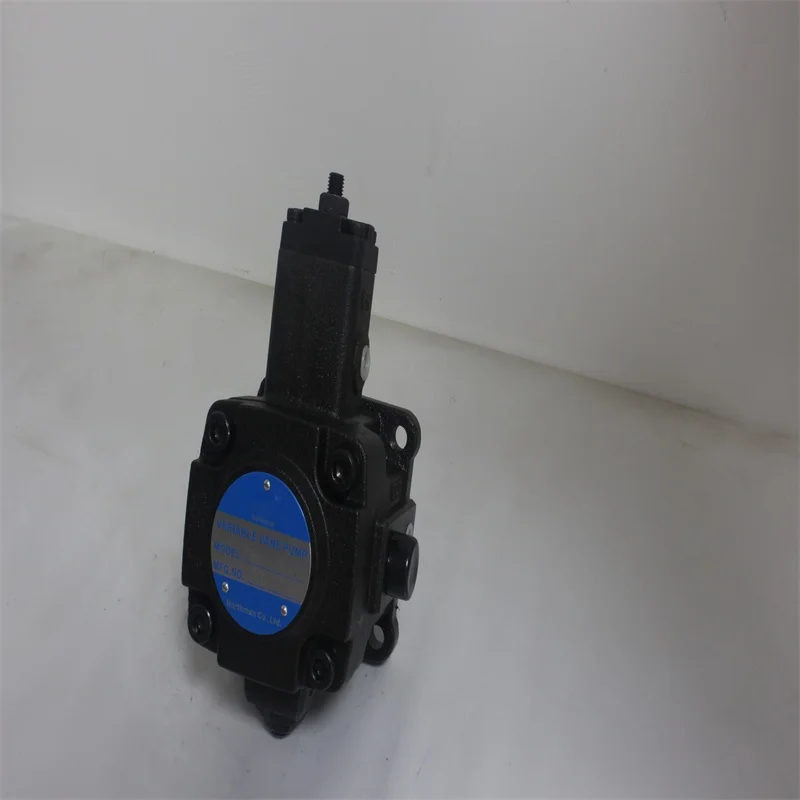

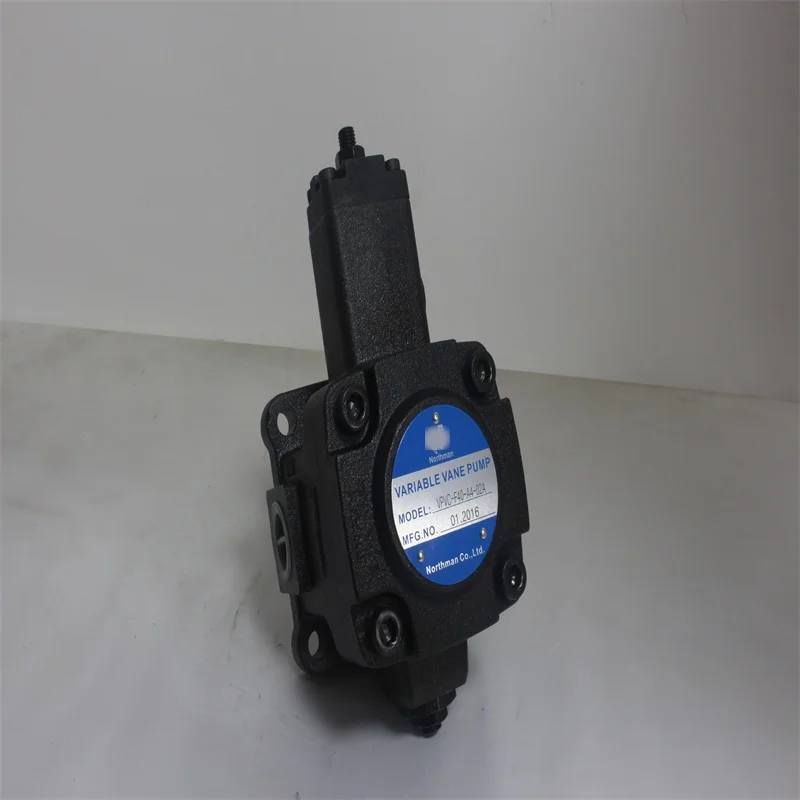

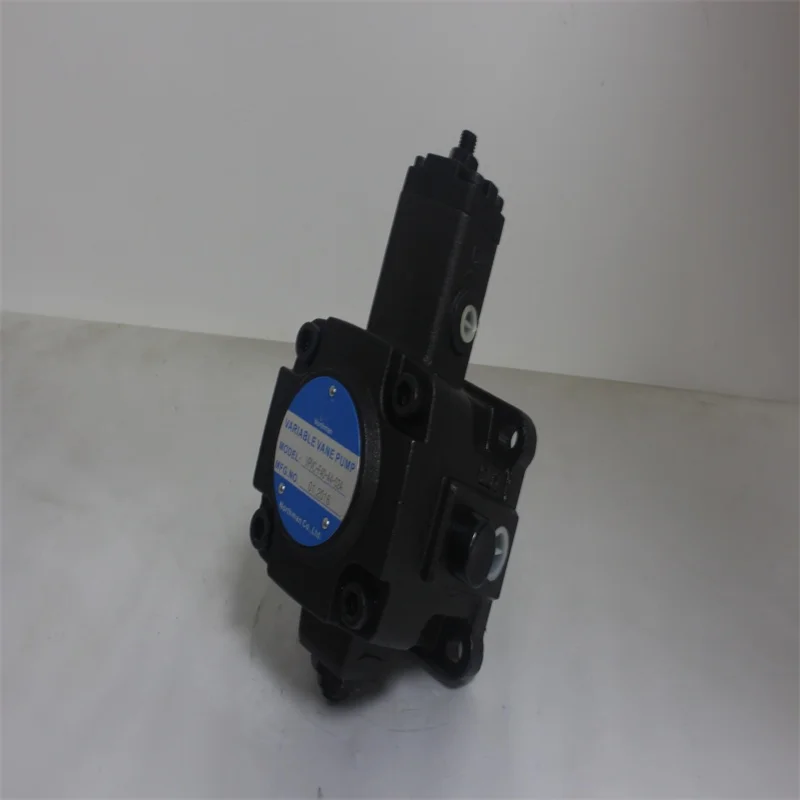

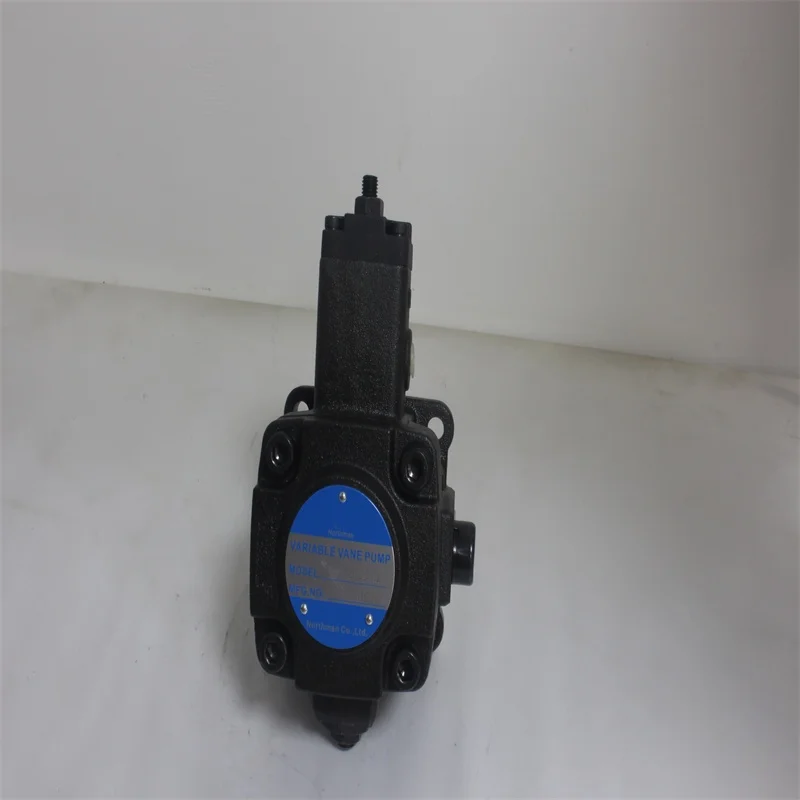

Northman VPVC Vane Pump | VPVC-F20-A2-02 VPVC-F40-A4-02A

The Northman VPVC Series (specifically including the VPVC-F20-A2-02 and VPVC-F40-A4-02A nomenclatures) of variable volume, pressure-compensated vane pumps manufactured by Chengyuan Hydraulic are premium fluid power solutions engineered to cross-reference the rigorous speed and thermal constraints of heavy-duty automated machine tool infrastructure. Outfitted with an integrated direct-acting spring compensator regulator, this dynamic displacement platform automatically modifies the internal stator-to-rotor eccentricity index in direct response to system multi-branch working loads. When pressure targets meet the targeted dead-head limit, the pump scales down to a near-zero output flow posture, rendering clumsy and heat-intensive master system relief valves obsolete. Covering both low-pressure A2 (15-35 bar) and higher-pressure A4 (50-70 bar) configurations, Chengyuan deploys precise CNC cam-track grinding and hydrostatically balanced wear-plate interfaces to guarantee 100% original-place interchangeable plug-and-play compatibility for SAE 2-bolt flanges, keyed shafts, and pipe junctions. Prior to leaving the warehouse, each pump goes through 100% simulated loaded dead-head cutoff response calibration, volumetric thermal auditing, and acoustic sound testing, minimizing parasitic power losses and system heat generation.

Technical Specifications :

• Brand Compatibility Matrix: Northman VPVC / Chia Wang Series Replacement Configuration

• Target Part Number Nomenclature Covered: VPVC-F20-A2-02, VPVC-F40-A4-02A

• Nominal Delivery Capacity (Audited at Standard 1800 rpm):

  • VPVC-F20 Variant: Nominal full-flow output rating of 20 L/min (5.3 GPM)

  • VPVC-F40 Variant: Nominal full-flow output rating of 40 L/min (10.5 GPM)

• Geometric Volumetric Displacement Limits:

  • VPVC-F20 Layout: Approximately 11.1 $cm^3/rev$

  • VPVC-F40 Layout: Approximately 22.2 $cm^3/rev$

• Pressure Compensation Regulation Windows (Code A2 / A4 Matrix):

  • A2 Profile (VPVC-F20-A2): Selectable pressure range from 15 to 35 $kgf/cm^2$ (1.5 – 3.5 MPa / 214 – 500 PSI)

  • A4 Profile (VPVC-F40-A4): Heavy cutoff range spanning 50 to 70 $kgf/cm^2$ (5.0 – 7.0 MPa / 714 – 1000 PSI)

• Maximum Allowable Cutoff Threshold (Max. Set Pressure):

  • A2 Sub-Group: 35 $kgf/cm^2$ (3.5 MPa / 500 PSI)

  • A4 Sub-Group: 70 $kgf/cm^2$ (7.0 MPa / 1000 PSI)

• Rotational Dynamic Speed Constraints: Maximum rated input velocity of 1800 rpm; minimum stable threshold at 800 rpm

• Mounting Standard Specification: Standard SAE 2-Bolt Flange configuration (Designated by “F” prefix)

• Net Structural Assembly Mass:

  • VPVC-F20 Enclosure: Weighs roughly 5.6 kg (12.3 lbs)

  • VPVC-F40 Enclosure: Weighs roughly 9.5 kg (20.8 lbs)

• Case Drain Porting Standard: Dedicated PT 1/4 internal leakage drainage port (Must be direct-piped to tank)

Key Technical Advantages:

• Sharp Cut-off Compensator Regulator with Sub-0.05s Response: The VPVC package incorporates a rapid-response feedback spool paired with a high-rate control spring. Once secondary actuators meet resistance thresholds, fluid pressure forces the internal stator ring toward the concentric center, shrinking displacement down to zero in under 0.05 seconds. This eliminates standard overflow power degradation, lowering input motor horsepower consumption by up to 30-50%.

• Hydrostatically Balanced Side Wear Plates with Micro-Clearance Adjustments: To secure high volumetric retention up to 70 bar continuous cutoff loading, the internal cartridge incorporates hardened, nitrided alloy steel side plates. Strategic fluid cross-channels back-load the plates against the rotating rotor face with micron accuracy, offsetting thermal expansion gaps and sustaining an absolute volumetric efficiency curve above 92%.

• Heavy-Duty Self-Lubricated Composite Dry Sleeve Bearings: The input drive shaft is stabilized by premium self-lubricating dry-type journal bushings (PTFE + sintered bronze substrate layer) instead of traditional needle rollers. This layout tolerates heavy radial shock loads while preventing metallic debris from shedding into the close-tolerance rotor slots.

• Sub-Micron Coordinated Cam Profile Grinding for Quiet Acoustical Execution: The internal track profile of the stator ring is honed on specialized CNC coordinates to a mirror-smooth finish, ensuring seamless sliding engagement for the high-yield molybdenum-tungsten tool steel blades. This smooth contact layout removes high-frequency blade chatter, limiting acoustic footprints to an ultra-quiet 60-65 dB(A) bracket.

Application Areas:

• Precision CNC Machine Tool Infrastructure: Main fluid power source for automated lathes, milling stations, and CNC cutting fields managing tool turret indexers, chuck jaws, and hydraulic tailstock fixtures.

• Light Automation Custom Up-Fit Rigs: Central power station for automated footwear injection molders, composite thermoforming presses, and pilot manifolds on compact die-casting setups.

• Multi-Station Transfer Lines & Industrial Robotic Manipulators: High-duty holding stations requiring sustained dead-head clamping pressure without thermal expansion of the hydraulic fluid.

Expert Maintenance Tips:

• The Case Drain Line (DR Port) Must Pipingly Route Independently Below the Minimum Oil Level: This is the single most critical plumbing instruction for variable vane pump configurations! Never splice the DR port line into the main low-pressure return line. It must run un-restricted and independently back to the reservoir, terminating below the lowest active oil surface. Obstructing or backing up this drain pathway spikes internal housing pressures, instantly blowing out the front nitrile shaft lip-seal or physically fracturing the variable positioning pistons.

• Calibrate Cutoff Thresholds Incrementally From a De-Energized Low Base Line: When tuning the pressure cutoff target on a heavy-duty VPVC-F40-A4 unit, always back out the master adjustment bolt to its minimum setting before starting the electric prime mover. Block the primary manifold pathway, observe the gauge, and slowly thread the adjuster inward until the targeted cutoff plateau is achieved. Never blind-tighten the regulator screw prior to launch, as sudden over-pressurization risks locking the internal shifting mechanics.

• Isolate System Fluid From Particulate and Varnish Build to Prevent Stator Stiction: Variable displacement mechanisms are highly vulnerable to particulate contamination and oxidization varnish. If the fluid develops fine metallic shavings or thermal lacquer, these contaminants will coat the variable positioning piston and stator slide guides, binding the mechanism in full-偏心 position. This locks the pump into a fixed-displacement mode, inducing catastrophic overheating during holding periods. Implement strict fluid conditioning filtration via absolute $\le 10$-micron return and intake filter packages.
